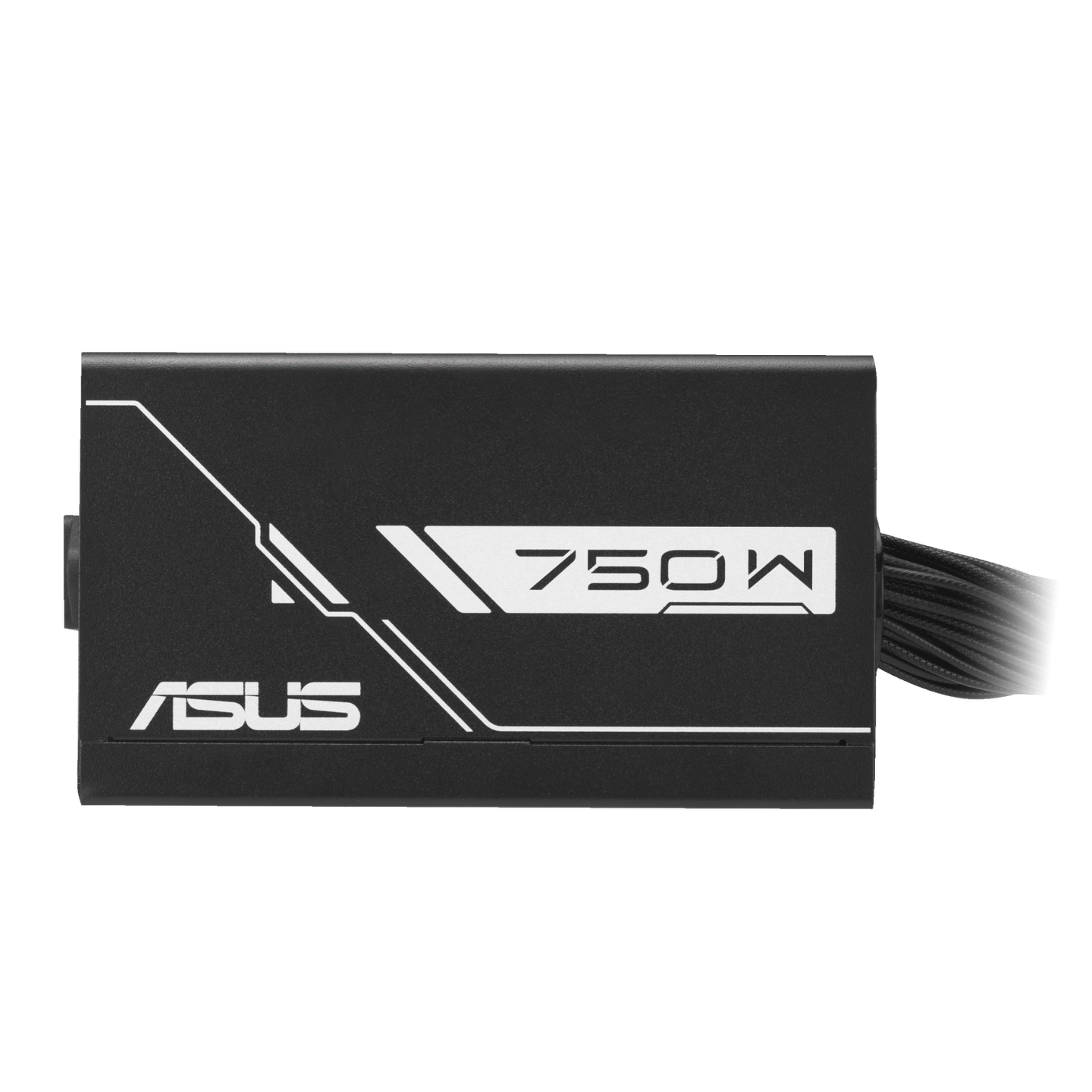

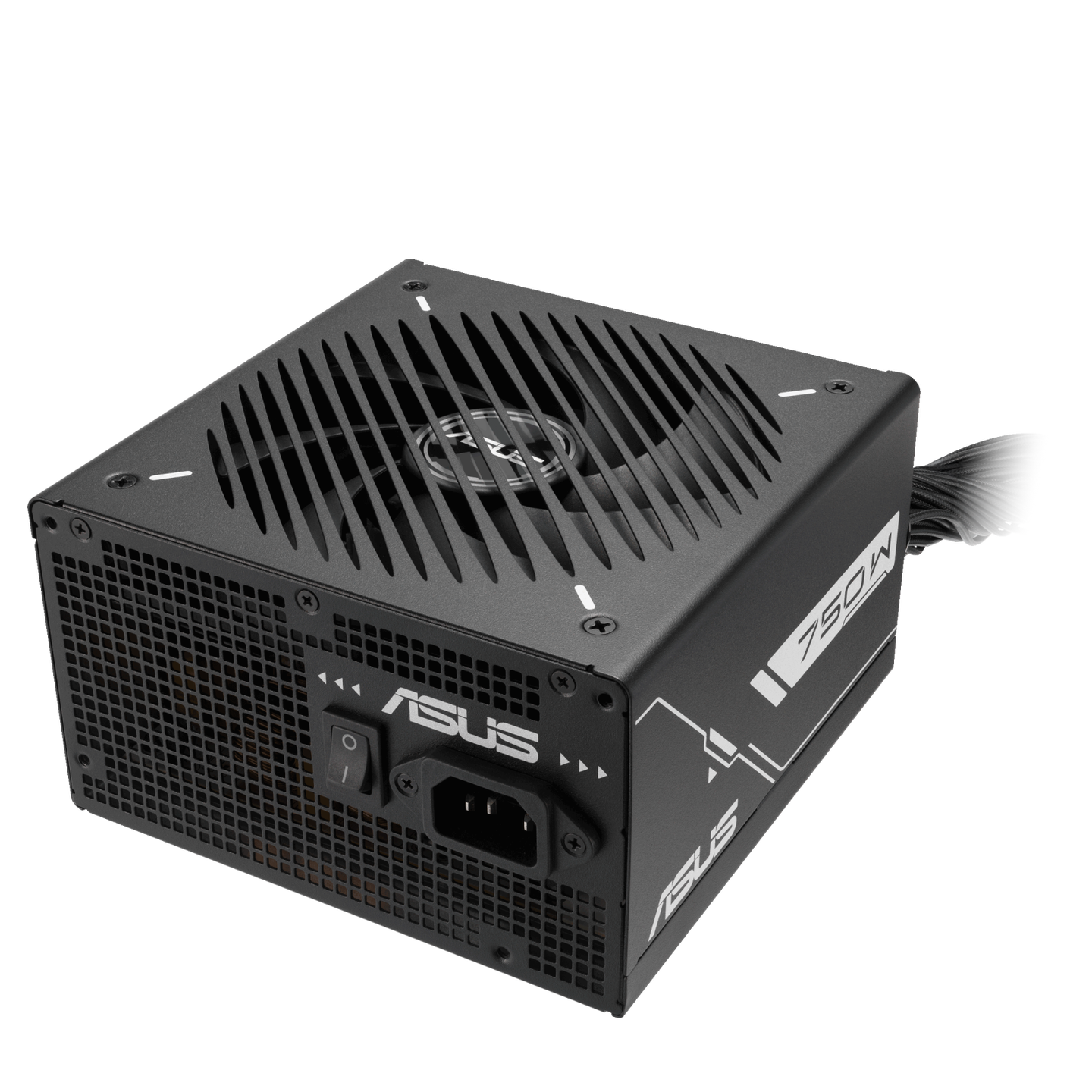

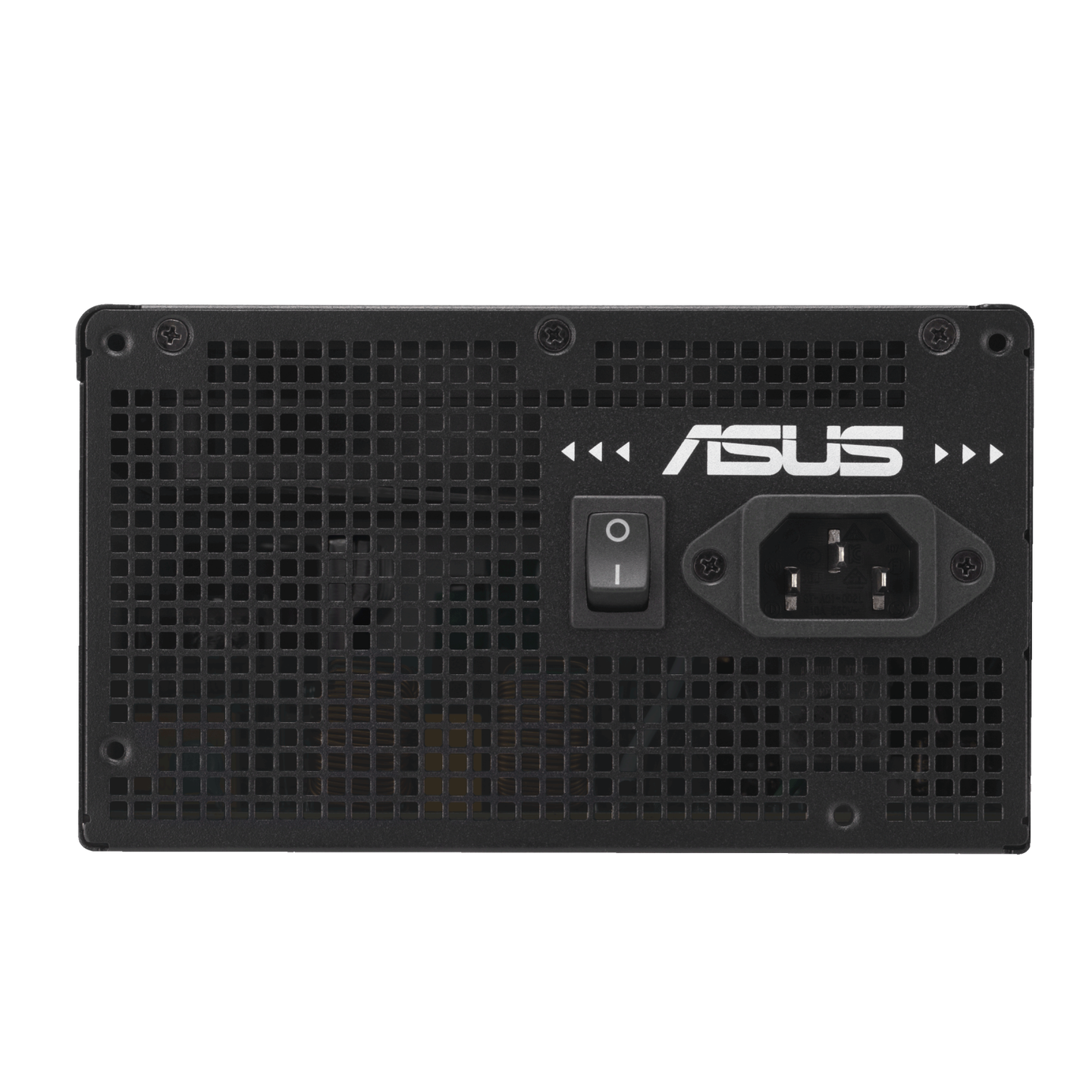

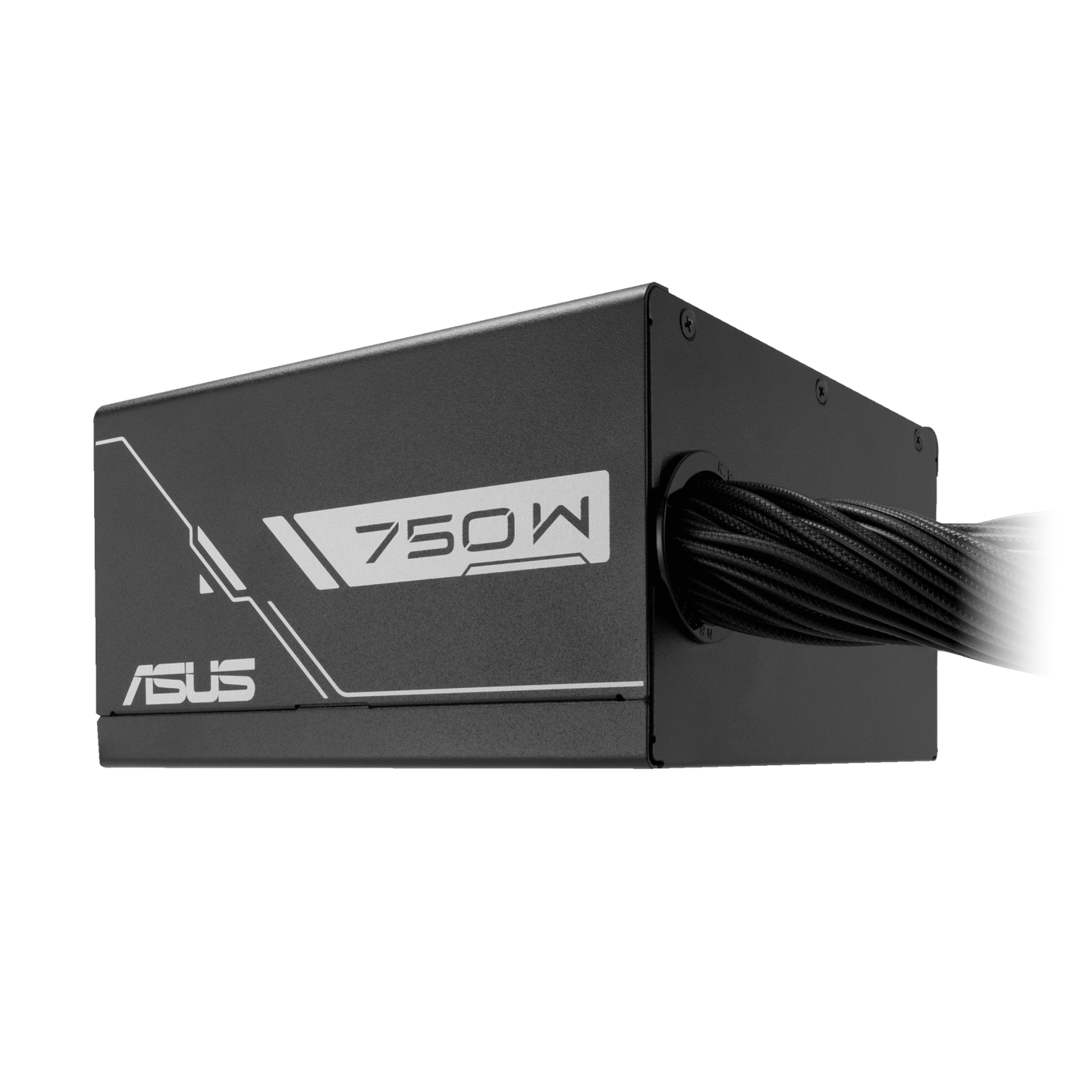

ASUS ROG Prime 750W Bronze Power Supply — ATX12V, 80 PLUS Bronze Certified, Dual Ball Bearing Fan
The ASUS Prime 750W Bronze PSU is built for reliable, efficient, and durable power delivery, ideal for everyday PC builds and gaming rigs. Featuring 80 PLUS Bronze certification, dual ball bearing fans for extended lifespan, and premium low-ESR capacitors, this power supply ensures stable performance with flexible etched cables for clean installations.
-
Key Features
-
750W Bronze Efficiency – 80 PLUS Bronze certified with premium low-ESR electrolytic capacitors for stable and efficient power delivery.
-
Dual Ball Bearing Fans – Offer up to twice the lifespan of sleeve bearing designs for long-lasting cooling performance.
-
Flexible Etched Cables – Bend easily during installation, allowing for cleaner cable management and optimized airflow.
-
Comprehensive Protection – Built-in OPP, OVP, UVP, SCP, OCP, and OTP safeguards ensure stable operation under varying loads.
-
Wide AC Input Range – Supports 100–240 Vac for compatibility across regions.
-
Versatile Connectivity – Comes with multiple CPU, PCI-E, SATA, and peripheral connectors to support a variety of builds.
Technical Specifications :
Category Details Model PRIME-750B-BLACK Form Factor Intel ATX12V PFC Type Active PFC Dimensions 150 × 150 × 86 mm Efficiency Certification 80 PLUS Bronze MTBF > 120,000 hours @ 25 °C Protection Features OPP / OVP / UVP / SCP / OCP / OTP Environmental Certification RoHS AC Input Range 100–240 Vac DC Output Voltage +3.3V / +5V / +12V / −12V / +5Vsb Maximum Load 20A / 20A / 62.5A / 0.3A / 2.5A Combined Load 120W / 120W / 750W / 3.6W / 12.5W Total Power Output 750W Cable Connectors - MB 24/20-pin ×1 - CPU 4+4-pin ×2 - PCI-E 8-pin ×3 - SATA ×6 - Peripheral ×3 Package Contents Power Cord ×1, Motherboard Power Cable (600 mm) ×1, CPU Cables (800 mm) ×2, PCI-E 1-to-2 Cable (600 mm) ×1, PCI-E 1-to-1 Cable (600 mm) ×1, SATA 1-to-3 Cables ×2 (400+120+120 mm), Peripheral 1-to-3 Cable ×1, User Manual ×1 Weight 2.2 kg (Single PSU) / 3.067 kg (With Packing) 0dB Technology Not Supported
-
