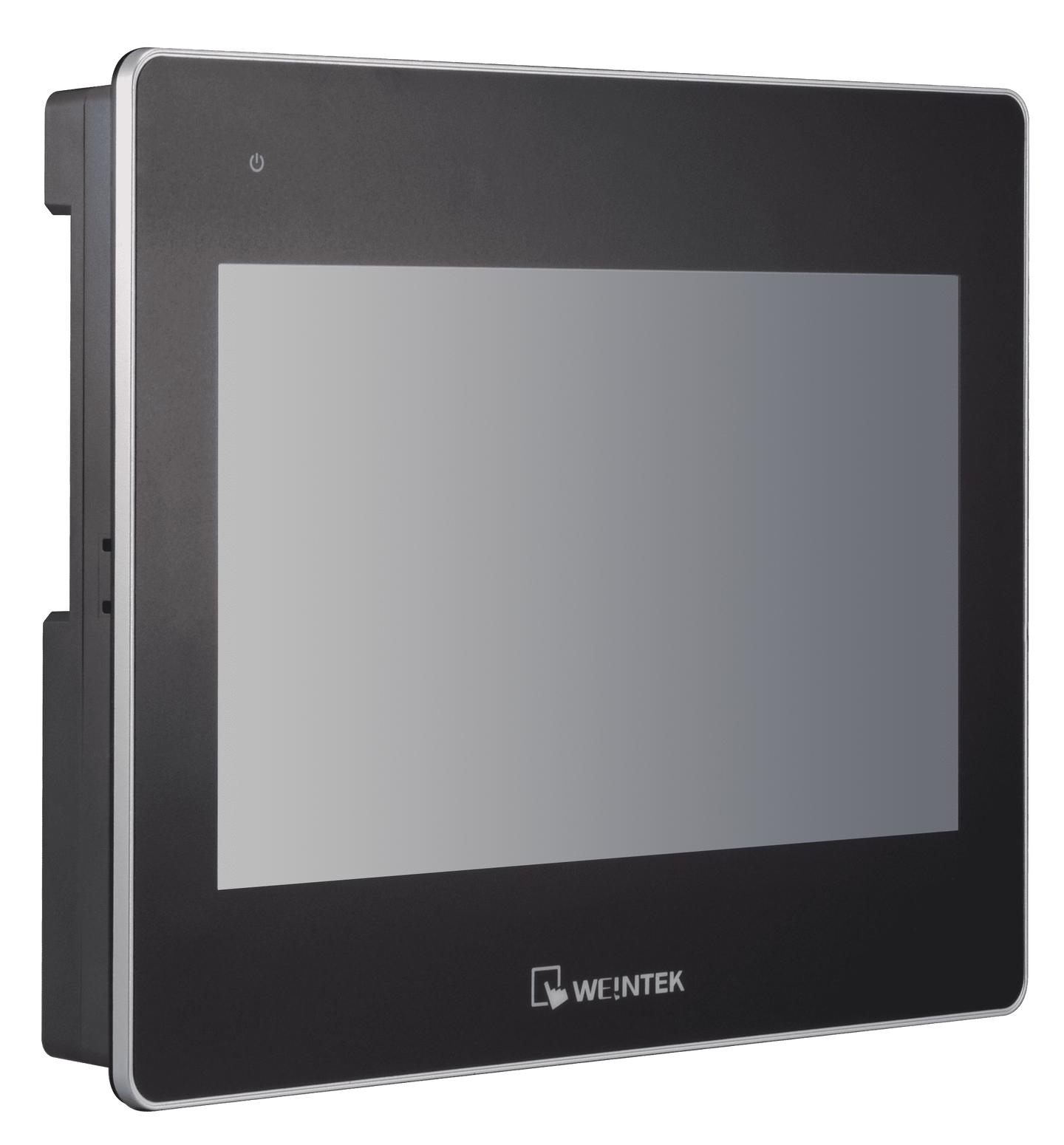

WEINTEK CMT3102X HMI – 10.1" WVA Display | CAN Bus | Industrial Touch Panel
Description:

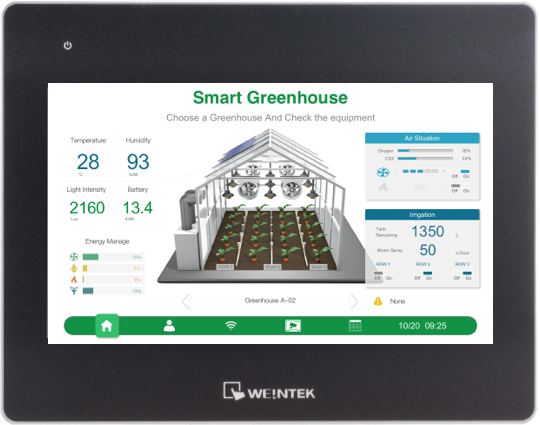

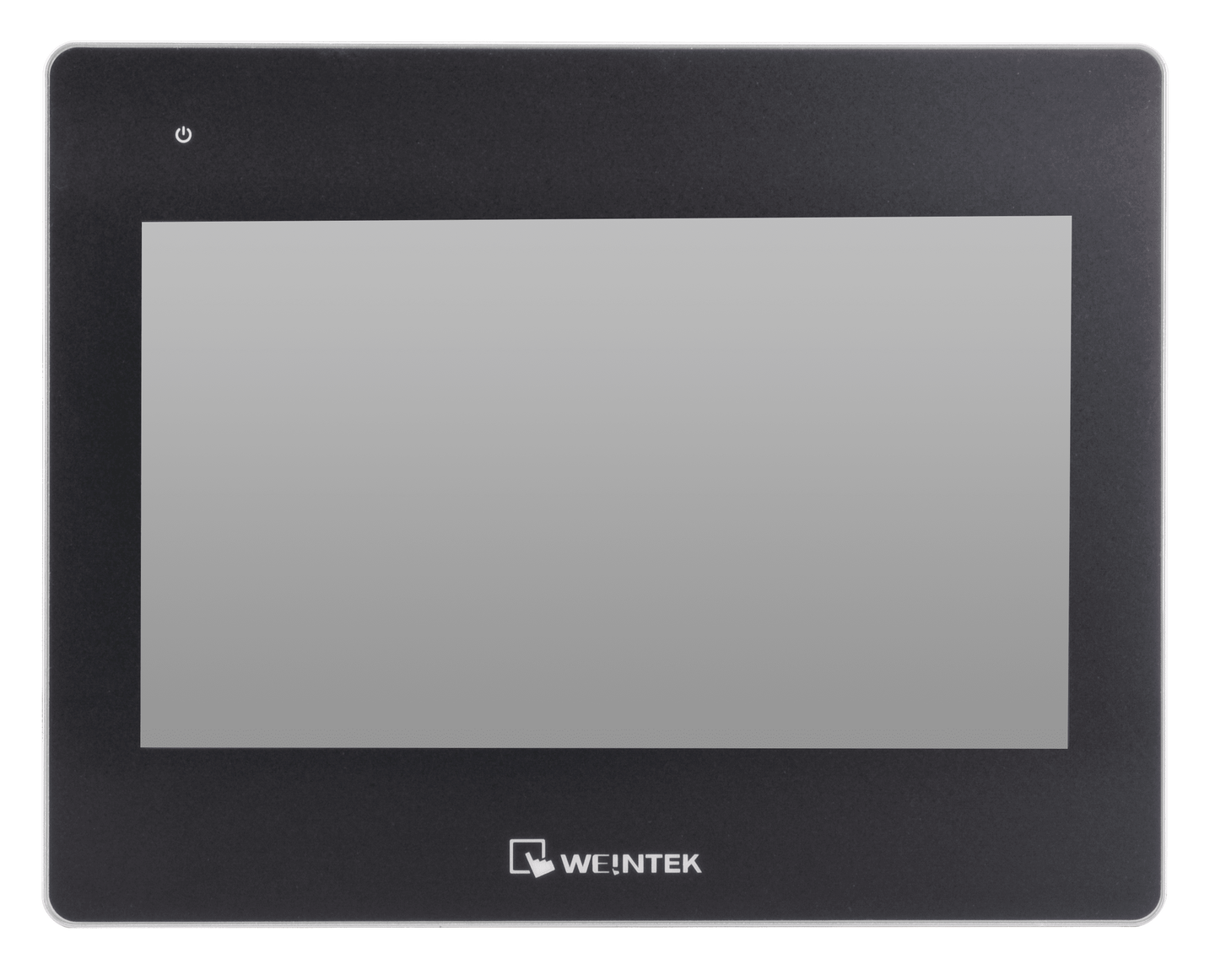

The CMT3102X features a 10.1" 1024 × 600 WVA LCD with 16.7 million colors and wide 89° viewing angles for crisp, clear visualization. It includes 4 GB flash memory, 1 GB RAM, and a built-in RTC to support complex applications smoothly.
One of its standout features is built-in CAN Bus, supporting CANopen, CAN Bus 2.0A/2.0B, and SAE J1939, making it ideal for automotive, heavy equipment, and industrial network applications. Combined with dual Ethernet ports and multiple COM interfaces, it provides flexible communication options.
With built-in power isolation, IP66-rated protection, and PCB coating, the CMT3102X is engineered for long-lasting performance. It’s also compatible with the M02 WiFi Expansion Module, enabling wireless connectivity where needed.
Key Features:
10.1" WVA LCD with 1024 × 600 resolution and 89° wide viewing angles
Quad-core RISC processor with 4 GB flash and 1 GB RAM
Built-in CAN Bus with support for CANopen, CAN Bus 2.0A/2.0B, and SAE J1939
Dual Ethernet ports (Gigabit + 10/100) for network flexibility
Multiple COM interfaces with RS-485 support
Compatible with M02 WiFi Expansion Module for wireless communication
Fan-less cooling system for silent, stable operation
PCB coating for corrosion resistance in harsh environments
IP66 / NEMA4 front panel protection and built-in power isolation
Certified for ATEX Zone 2/22, suitable for hazardous locations
Supports Weincloud EasyAccess 2.0 and Dashboard (Optional)
Applications:
Industrial automation systems and SCADA
Machine control and factory visualization
CAN Bus network applications (e.g., automotive, heavy machinery, energy)
OEM equipment HMI solutions
Building automation and remote monitoring
Hazardous environments (ATEX Zone 2/22)
Technical Specifications :

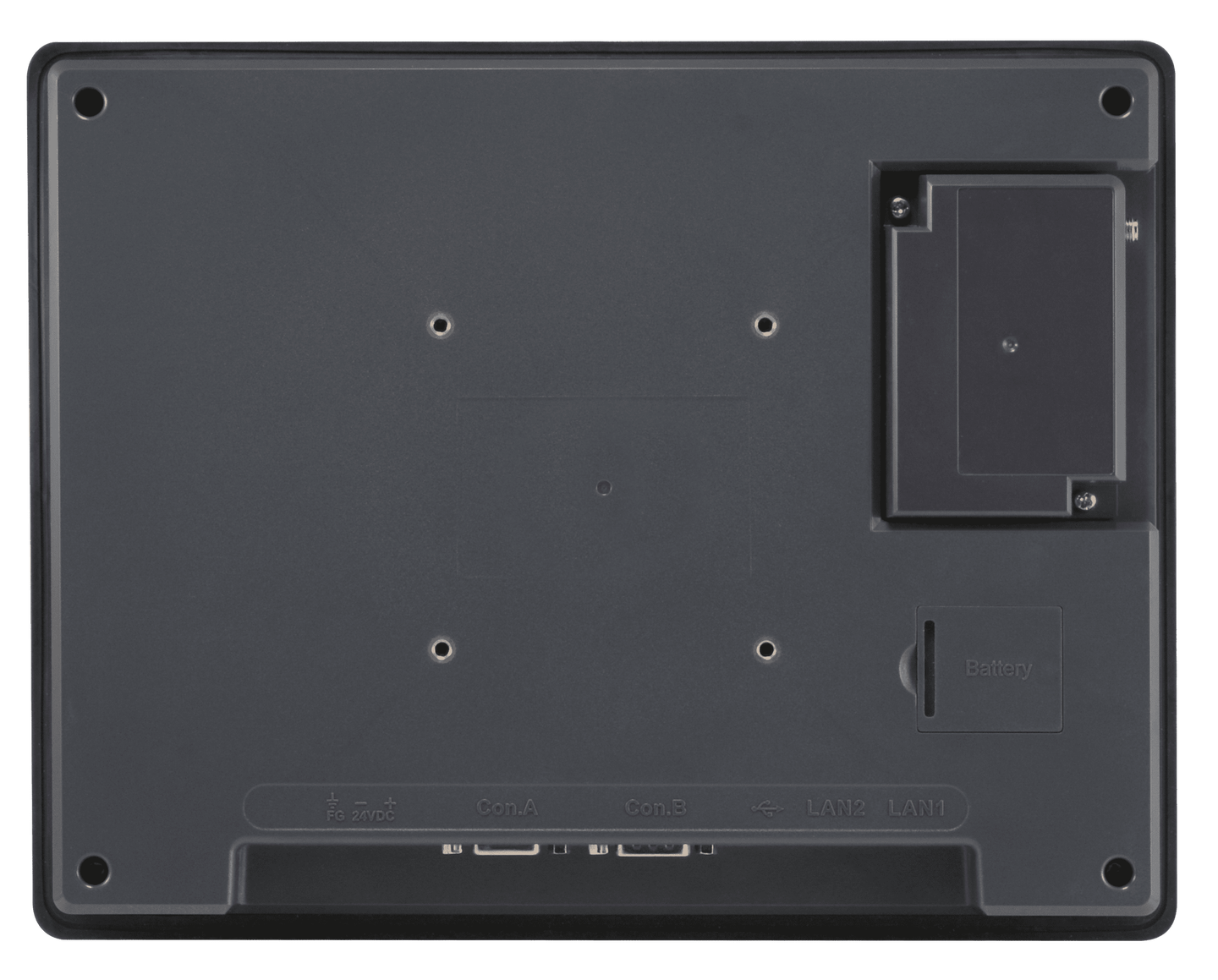

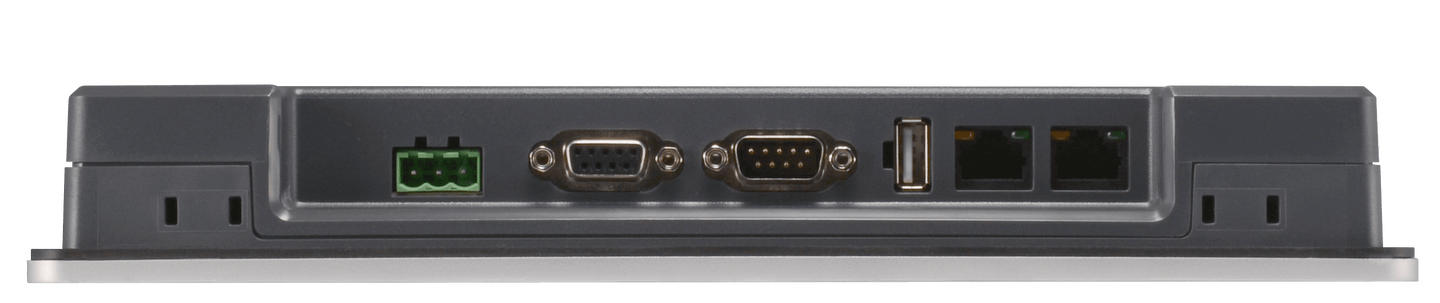

Category Specification Display 10.1" WVA LCD, 1024 × 600 resolution, 350 cd/m² brightness, 1000:1 contrast ratio, LED backlight (>50,000 hrs), 16.7M colors, 89° viewing angle (T/B/L/R), Pixel pitch 0.2175 × 0.2088 mm Touch Panel 4-wire resistive type, ±2% accuracy Memory 4 GB flash, 1 GB RAM Processor Quad-core RISC I/O Ports No SD card slot, USB 2.0 Host × 1, Ethernet LAN 1 (10/100/1000), LAN 2 (10/100), COM Ports: Con.A – COM2 RS-485 2W/4W, COM3 RS-485 2W, CAN Bus; Con.B – COM1 RS-232 4W, COM3 RS-232 2W RS-485 Dual Isolation N/A CAN Bus Yes (supports CANopen, CAN Bus 2.0A/2.0B, SAE J1939) Audio Output N/A RTC Built-in Power 24 VDC ±20%, Built-in power isolation, 1 A @ 24 VDC, 500 VAC voltage resistance (1 min), Isolation resistance >50 MΩ at 500 VDC Enclosure Plastic, PCB coating Dimensions (W×H×D) 271 × 213 × 38 mm Panel Cutout 260 × 202 mm Weight Approx. 1.2 kg Mounting Panel mount, VESA 75 × 75 mm Protection NEMA4 / IP66 / UL Type 4X (indoor) front panel Operating Temp. 0° to 50 °C Storage Temp. -20° to 60 °C Humidity 10% to 90% (non-condensing) Altitude Up to 3,000 m Vibration 10–25 Hz (X, Y, Z, 2G, 30 min) Certifications CE marked, cULus listed, ATEX Zone 2/22 Category 3 G/D Software Weincloud EasyAccess 2.0 (Optional), Dashboard (Optional)
