WEINTEK CMT2078X HMI – 7" TFT Display | Compact Industrial Touch Panel

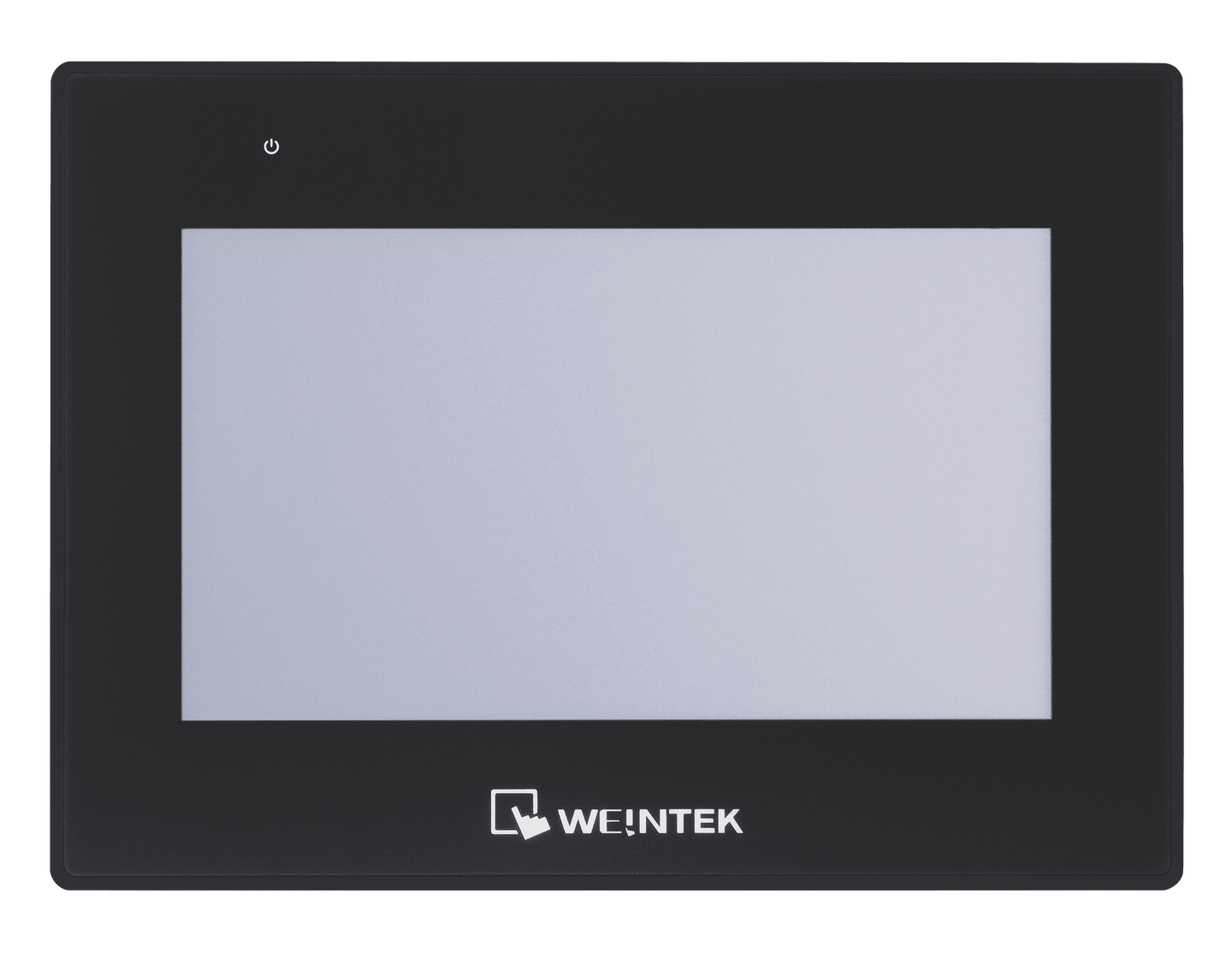

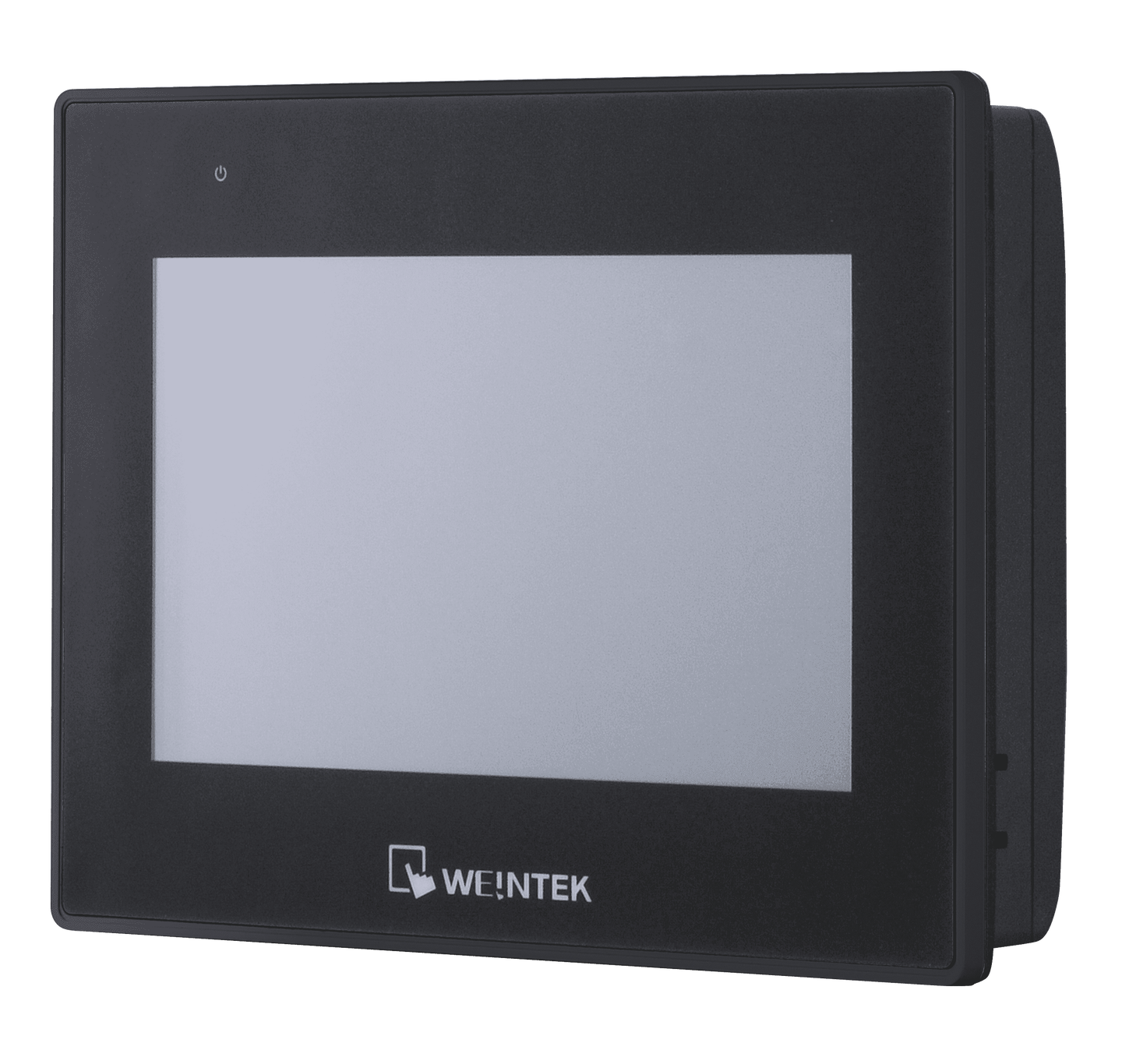

Description:The CMT2078X features a 7-inch 800 × 480 TFT LCD with 16.7M colors, providing clear and vivid display for machine operation and process visualization. It integrates 4 GB of flash memory, 1 GB RAM, and a built-in RTC, ensuring reliable storage and system performance.
With dual Ethernet ports, multiple COM interfaces, and a compact enclosure, the CMT2078X offers flexible connectivity options in a space-saving design. The PCB coating improves resistance against corrosion, making it suitable for harsh industrial environments.
Key Features:
7" TFT LCD with 800 × 480 resolution and 16.7M colors
Quad-core RISC CPU with dedicated 3D graphics processor
4 GB flash memory and 1 GB RAM for smooth performance
Fan-less cooling system for reliable, silent operation
Dual Ethernet ports for flexible networking
Multiple COM interfaces with RS-485 support
Built-in power isolation for safe and stable operation
NEMA4 / IP66 front panel protection against dust and water
PCB coating for enhanced durability in harsh environments
Compact and lightweight design for easy panel installation
Supports Weincloud EasyAccess 2.0 and Dashboard (Optional)
Applications:
Machine control and operation panels
Industrial automation systems
Compact OEM equipment HMI solutions
SCADA and remote monitoring panels
Building automation control interfaces
Visualization for production lines and workstations
Technical Specifications :

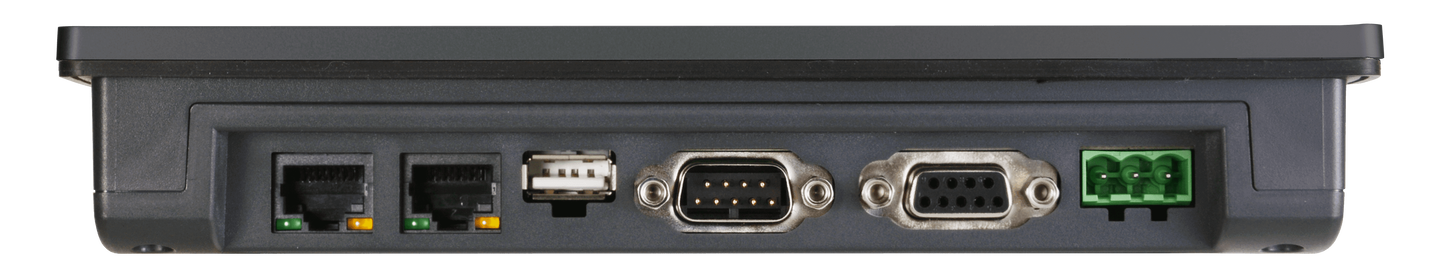

Category Specification Display 7" TFT LCD, 800 × 480 resolution, 400 cd/m² brightness, 800:1 contrast ratio, LED backlight (>30,000 hrs), 16.7M colors, Viewing angle (T/B/L/R): 80/60/80/80, Pixel pitch 0.1926 × 0.179 mm Touch Panel 4-wire resistive type, ±2% accuracy Memory 4 GB flash, 1 GB RAM Processor Quad-core RISC + dedicated 3D processor I/O Ports No SD card slot, USB 2.0 Host × 1, Ethernet LAN 1 (10/100), LAN 2 (10/100), COM Ports: Con.A – COM2 RS-485 2W/4W, COM3 RS-485 2W; Con.B – COM1 RS-232 4W, COM3 RS-232 2W RS-485 Dual Isolation N/A Audio Output N/A RTC Built-in Power 24 VDC ±20%, Built-in power isolation, 820 mA @ 24 VDC, 500 VAC voltage resistance (1 min), Isolation resistance >50 MΩ at 500 VDC Enclosure Plastic, PCB coating Dimensions (W×H×D) 200.3 × 146.3 × 35.0 mm Panel Cutout 192 × 138 mm Weight Approx. 0.6 kg Mounting Panel mount Protection NEMA4 / IP66 / UL Type 4X (indoor) front panel Operating Temp. 0° to 55 °C Storage Temp. -20° to 60 °C Humidity 10% to 90% (non-condensing) Altitude Up to 3,000 m Vibration 10–25 Hz (X, Y, Z, 2G, 30 min) Certifications CE marked, cULus listed Software Weincloud EasyAccess 2.0 (Optional), Dashboard (Optional)
