WEINTEK CMT2108X2 HMI – 10.1" WVA Display | Industrial Touch Panel

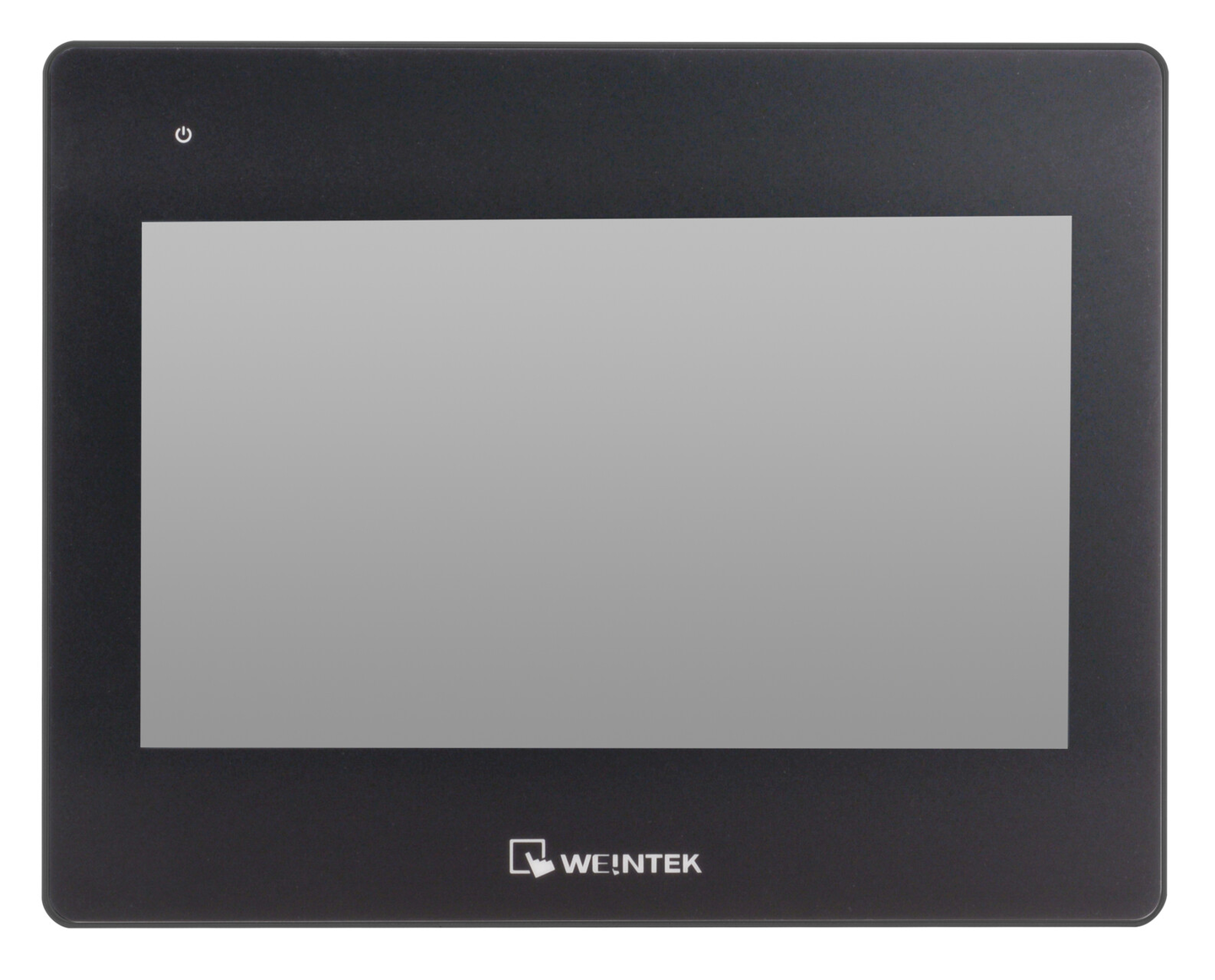

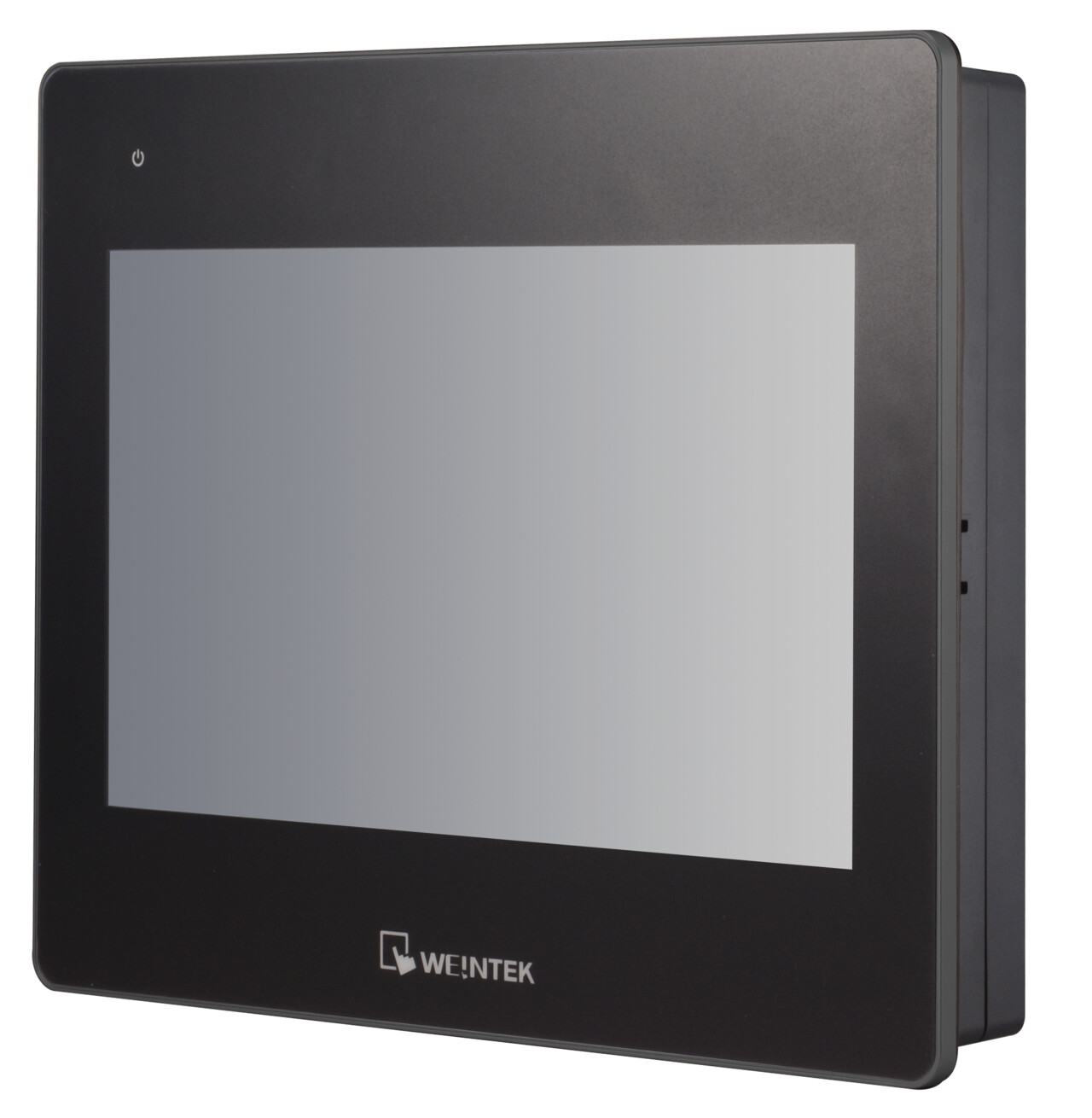

Description:The CMT2108X2 features a 10.1" 1024 × 600 WVA LCD with 16.7 million colors, ensuring sharp and vivid display from any direction. It integrates 4 GB of flash memory, 1 GB RAM, and a built-in RTC, providing stable performance and storage capacity for complex automation tasks.
With dual Ethernet ports, multiple COM interfaces, and built-in power isolation, the device ensures flexible connectivity and safe operation in demanding environments. Its PCB coating adds extra protection against corrosion, while the IP66 / NEMA4 front panel protection ensures resistance to dust and water ingress.
Additionally, the CMT2108X2 is compatible with the M02 WiFi Expansion Module, enabling convenient wireless communication when required.
Key Features:
10.1" WVA LCD with 1024 × 600 resolution and 89° wide viewing angles
Quad-core RISC processor for fast and stable performance
4 GB flash memory + 1 GB RAM
Fan-less cooling system for silent and reliable operation
Dual Ethernet ports for flexible network setup
Multiple COM interfaces with RS-485 support
Built-in power isolation for safety and reliability
NEMA4 / IP66 rated front panel for industrial environments
PCB coating for enhanced corrosion resistance

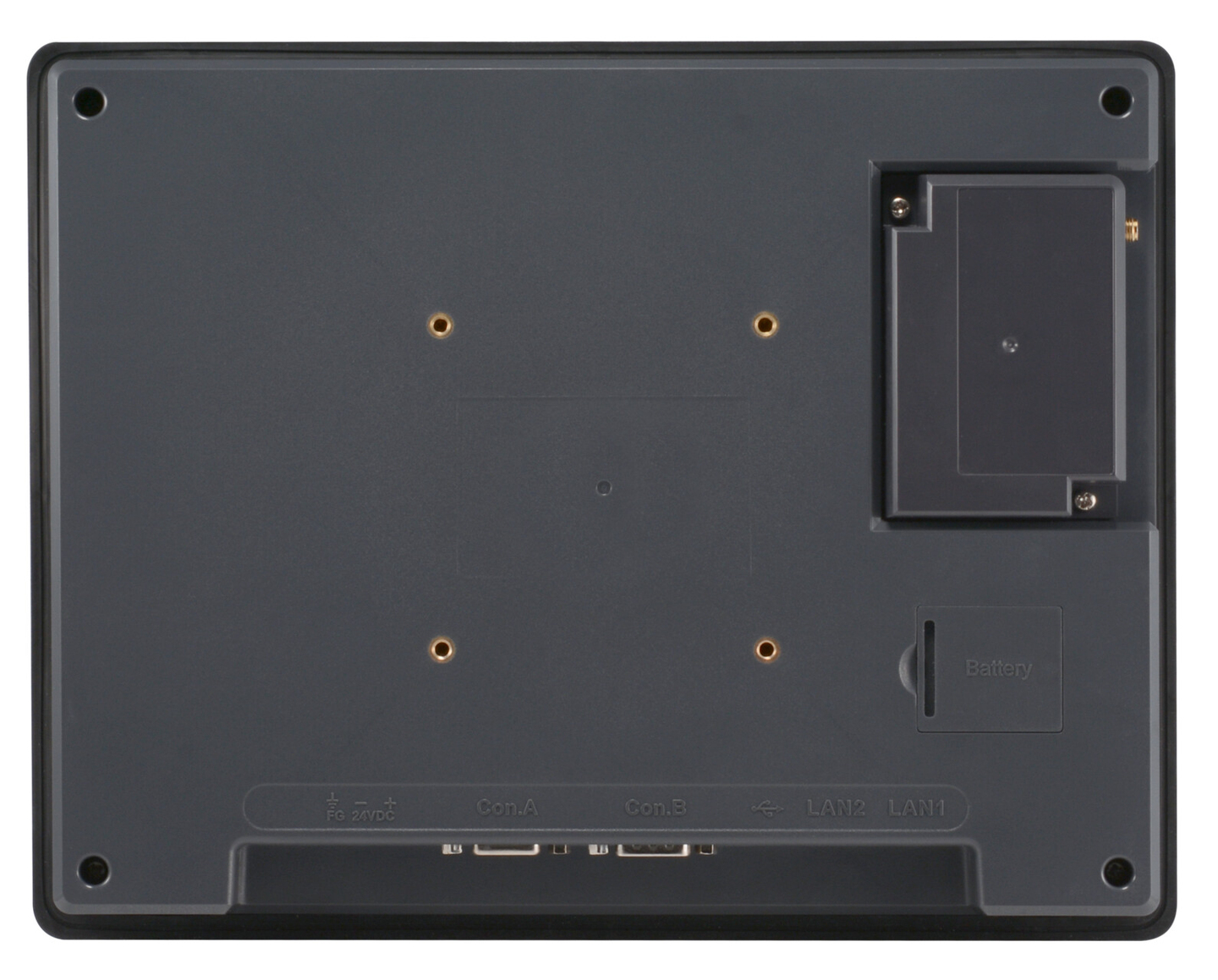

Compatible with M02 WiFi Expansion Module for wireless connectivity
Supports Weincloud EasyAccess 2.0 and Dashboard (Optional)
Applications:
Machine control and operation panels
Industrial automation systems
Process visualization and control
OEM equipment HMI interfaces
SCADA and remote monitoring solutions
Building automation and smart factory applications
Technical Specifications :

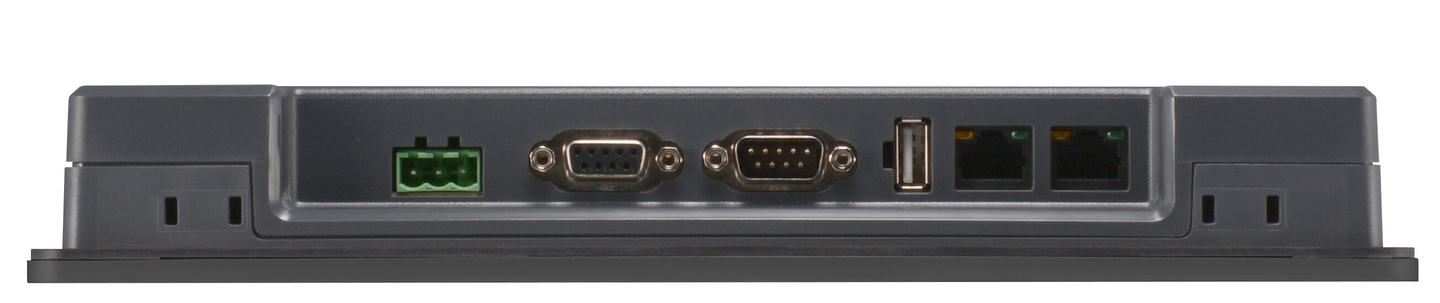

Category Specification Display 10.1" WVA LCD, 1024 × 600 resolution, 350 cd/m² brightness, 1000:1 contrast ratio, LED backlight (>50,000 hrs), 16.7M colors, 89° viewing angle (T/B/L/R), Pixel pitch 0.2175 × 0.2088 mm Touch Panel 4-wire resistive type, ±2% accuracy Memory 4 GB flash, 1 GB RAM Processor Quad-core RISC I/O Ports No SD card slot, USB 2.0 Host × 1, Ethernet LAN 1 (10/100/1000), LAN 2 (10/100), COM Ports: Con.A – COM2 RS-485 2W/4W, COM3 RS-485 2W; Con.B – COM1 RS-232 4W, COM3 RS-232 2W RS-485 Dual Isolation N/A Audio Output N/A RTC Built-in Power 24 VDC ±20%, Built-in power isolation, 1 A @ 24 VDC, 500 VAC voltage resistance (1 min), Isolation resistance >50 MΩ at 500 VDC Enclosure Plastic, PCB coating Dimensions (W×H×D) 271 × 213 × 38 mm Panel Cutout 260 × 202 mm Weight Approx. 1.2 kg Mounting Panel mount, VESA 75 × 75 mm Protection NEMA4 / IP66 / UL Type 4X (indoor) front panel Operating Temp. 0° to 50 °C Storage Temp. -20° to 60 °C Humidity 10% to 90% (non-condensing) Altitude Up to 3,000 m Vibration 10–25 Hz (X, Y, Z, 2G, 30 min) Certifications CE marked, cULus listed Software Weincloud EasyAccess 2.0 (Optional), Dashboard (Optional)
