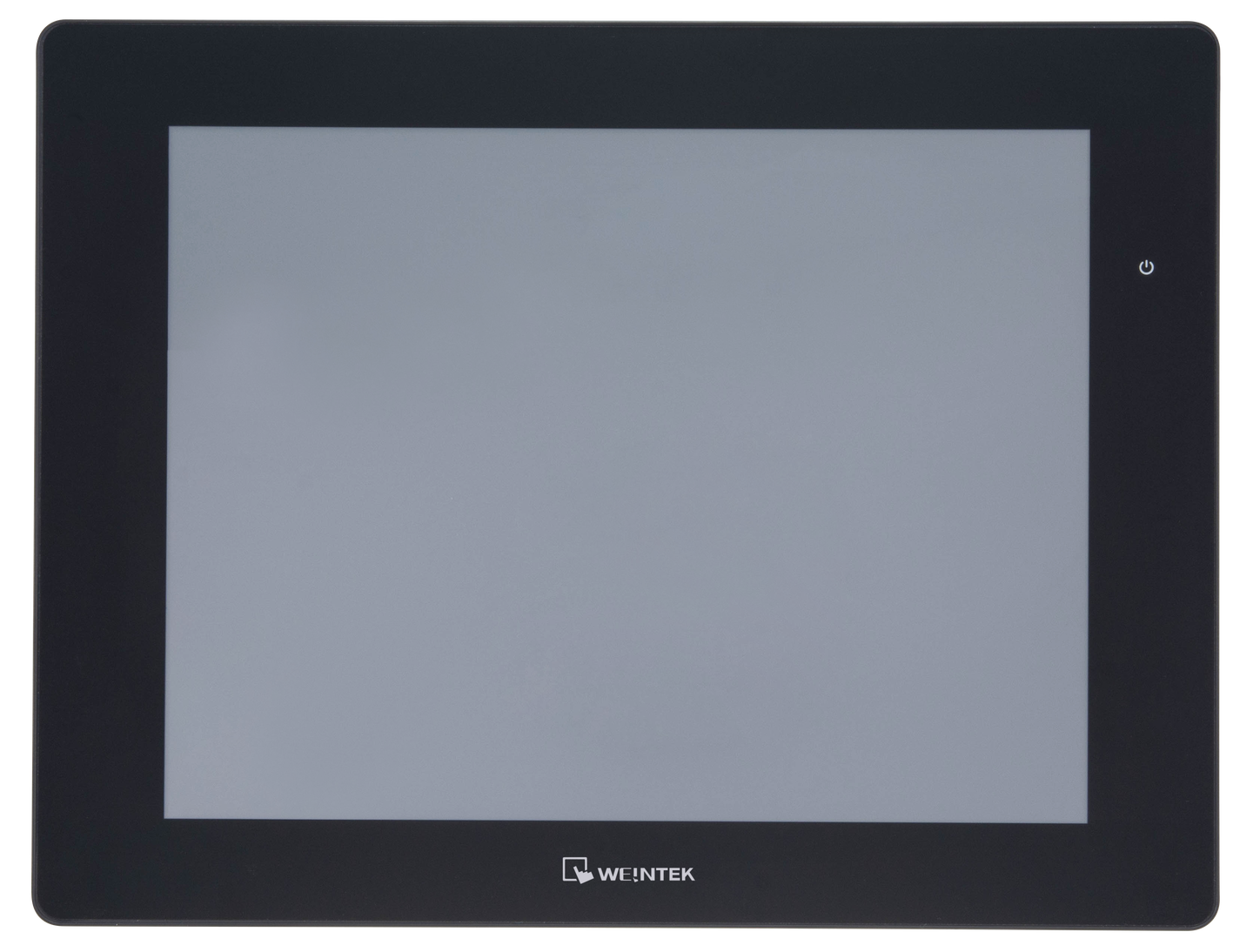

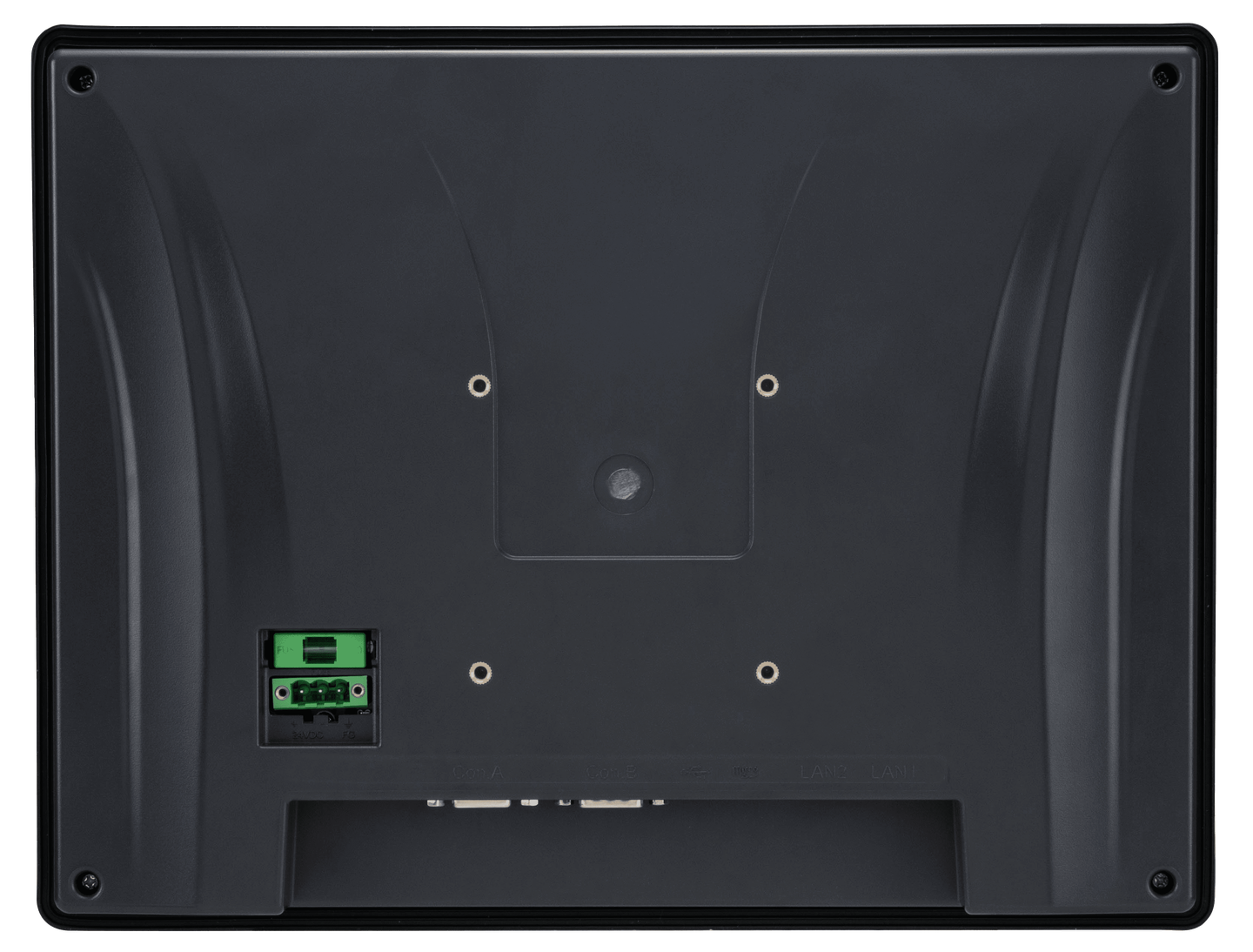

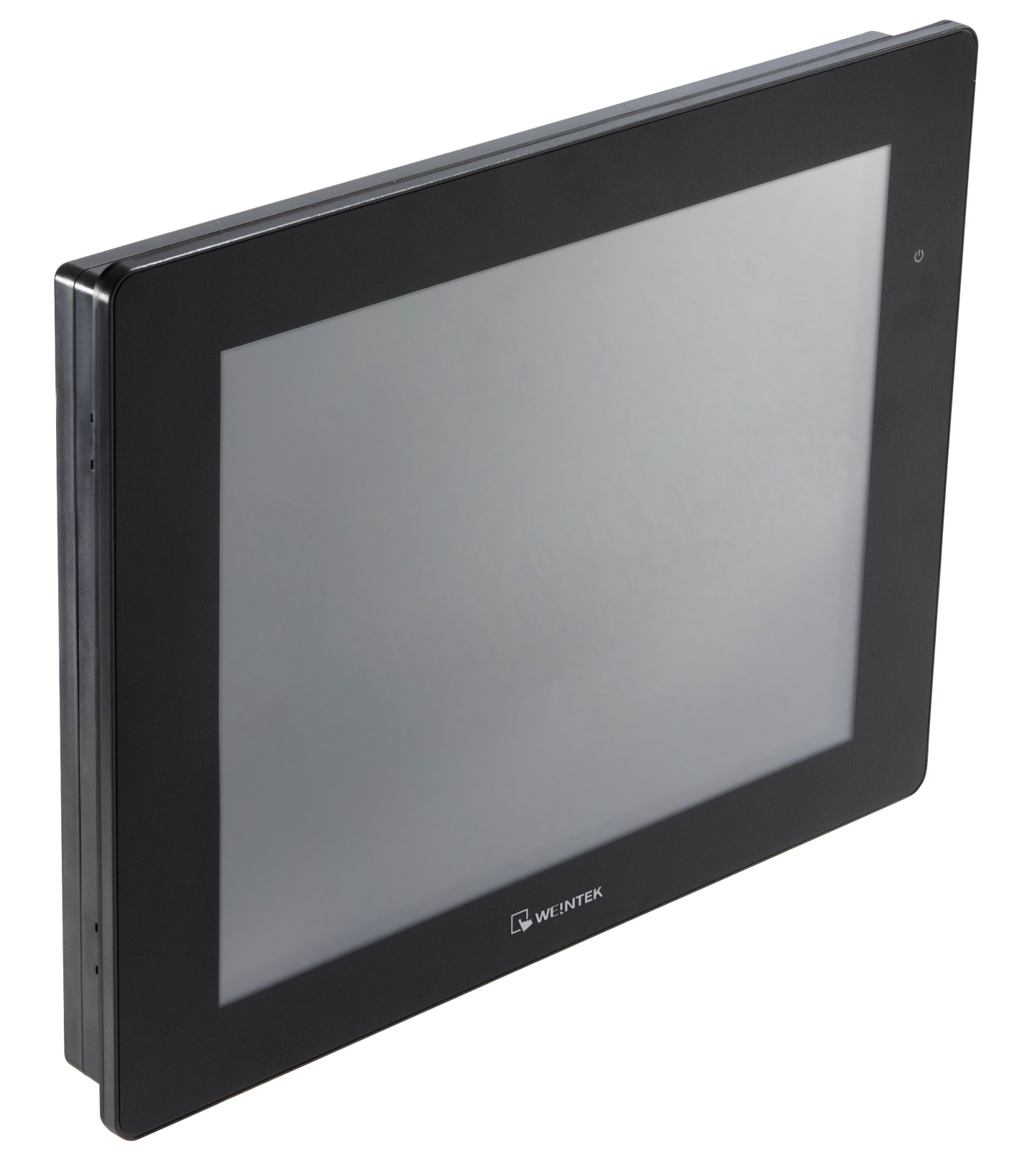

WEINTEK CMT2128X HMI – 12.1
Description:The cMT2128X HMI from WEINTEK features a 1024 × 768 resolution display with 16.7 million colors and a 600 cd/m² brightness level, ensuring clear and vibrant visualization from any angle. Its built-in 4 GB flash memory, expandable microSD card slot, and 1 GB RAM provide ample storage and smooth operation for complex projects.
With dual Ethernet ports, multiple COM interfaces, built-in power isolation, and IP66 / NEMA4 rated front panel protection, the cMT2128X is engineered to withstand harsh industrial conditions. Additionally, the PCB coating enhances reliability against corrosion in challenging environments.
Key Features:
12.1" WVA LCD with 1024 × 768 resolution and 89° wide viewing angles
High brightness (600 cd/m²) and long LED backlight life (>30,000 hrs)
Quad-core RISC processor for fast performance
4 GB flash memory + microSD expansion slot
Dual Ethernet ports (1 × Gigabit, 1 × 10/100) for flexible networking
Multiple COM ports with RS-485 dual isolation
Built-in power isolation for enhanced safety
IP66 / NEMA4 front panel protection
PCB coating for superior corrosion resistance
Fan-less cooling system for silent, reliable operation
Supports Weincloud EasyAccess 2.0 and Dashboard (Optional)
Applications:
Industrial automation & process control
Machine control and monitoring
Building automation systems
SCADA and remote access solutions
Factory visualization panels
OEM equipment interfaces
Technical Specifications :

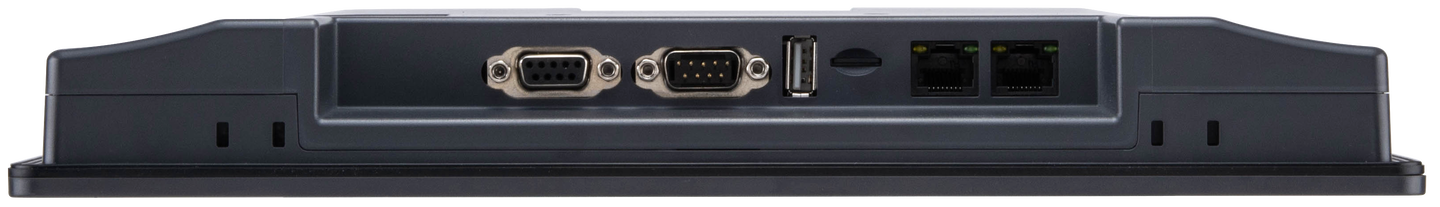

Category Specification Display 12.1" WVA LCD, 1024 × 768 resolution, 600 cd/m² brightness, 1000:1 contrast ratio, LED backlight (>30,000 hrs), 16.7M colors, 89° viewing angle (T/B/L/R) Touch Panel 4-wire resistive type, ±2% accuracy Memory 4 GB flash, 1 GB RAM Processor Quad-core RISC I/O Ports 1 × microSD, 1 × USB 2.0 Host, Ethernet LAN 1 (10/100/1000), LAN 2 (10/100), COM Ports: Con.A – COM2 RS-485 2W/4W, COM3 RS-485 2W; Con.B – COM1 RS-232 4W, COM3 RS-232 2W RS-485 Dual Isolation Yes Audio Output N/A RTC Built-in Power 24 VDC ±20%, Built-in power isolation, 1.2A @ 24 VDC, 500 VAC voltage resistance (1 min), Isolation resistance >50 MΩ at 500 VDC Enclosure Plastic, PCB coating Dimensions (W×H×D) 317 × 243 × 41 mm Panel Cutout 305 × 231 mm Weight Approx. 1.7 kg Mounting Panel mount, VESA 75 × 75 mm Protection NEMA4 / IP66 / UL Type 4X (indoor) front panel Operating Temp. 0° to 55 °C Storage Temp. -20° to 60 °C Humidity 10% to 90% (non-condensing) Altitude Up to 3,000 m Vibration 10–25 Hz (X, Y, Z, 2G, 30 min) Certifications CE marked, cULus listed Software Weincloud EasyAccess 2.0 (Optional), Dashboard (Optional)
