Description :

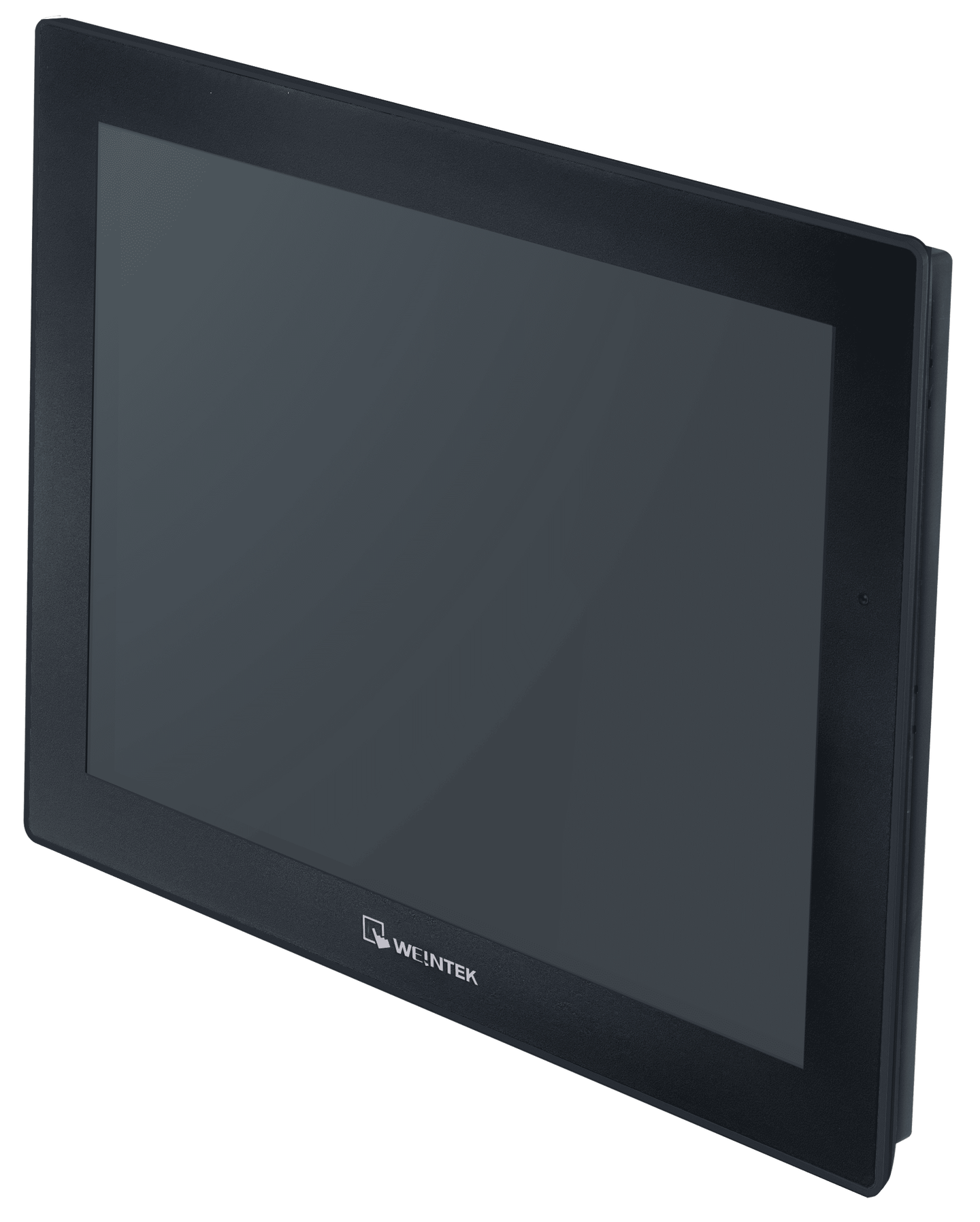

This HMI terminal features a large 15-inch WVA LCD with XGA 1024 x 768 resolution, offering excellent clarity and wide viewing angles. Driven by a quad-core RISC CPU with a high-performance 3D processor, it delivers smooth and responsive operation for advanced graphical interfaces. The CMT2158X includes generous 4GB flash memory, expandable via SD card, and versatile connectivity with dual Ethernet ports, USB, configurable COM ports, and even audio output. Its fan-less design, IP66/NEMA4 front panel, and aluminum enclosure ensure durable operation in harsh industrial conditions.

Key Features :

• 15" High-Resolution Display: 1024 x 768 WVA LCD with 350 cd/m² brightness.

• Powerful Graphics Processing: Quad-core CPU with dedicated 3D graphics processor.

• Robust Industrial Construction: Aluminum enclosure, fan-less cooling, and IP66/NEMA4 front panel.

• Expandable Memory: 4GB built-in flash plus SD/SDHC card slot for additional storage.

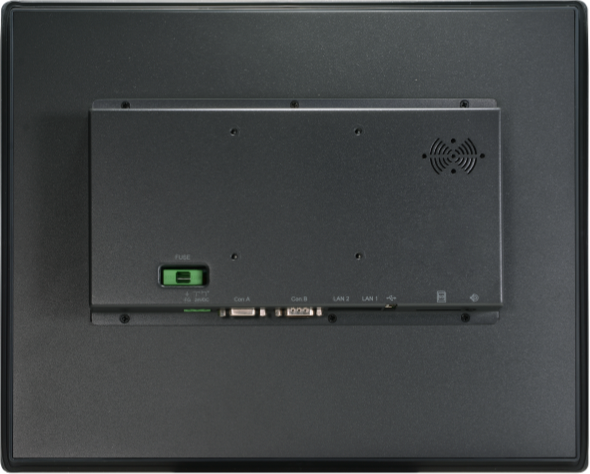

• Comprehensive Connectivity: Dual Ethernet (1xGigabit, 1xFast), USB 2.0, configurable COM ports, and audio output.

• Built-in Isolation: Features power isolation for enhanced noise immunity and reliability.

• Software Flexibility: Supports Weintek software and optional CODESYS runtime for integrated control.

Applications :

The CMT2158X is ideal for complex industrial applications requiring large-screen visualization, including:

• Industrial Control Rooms and Dashboards

• Factory Automation and Monitoring Systems

• Process Visualization and Data Acquisition

• Machine Operator Interfaces

• Advanced HMI/PLC Integrated Systems

Technical Specifications :
