Description :

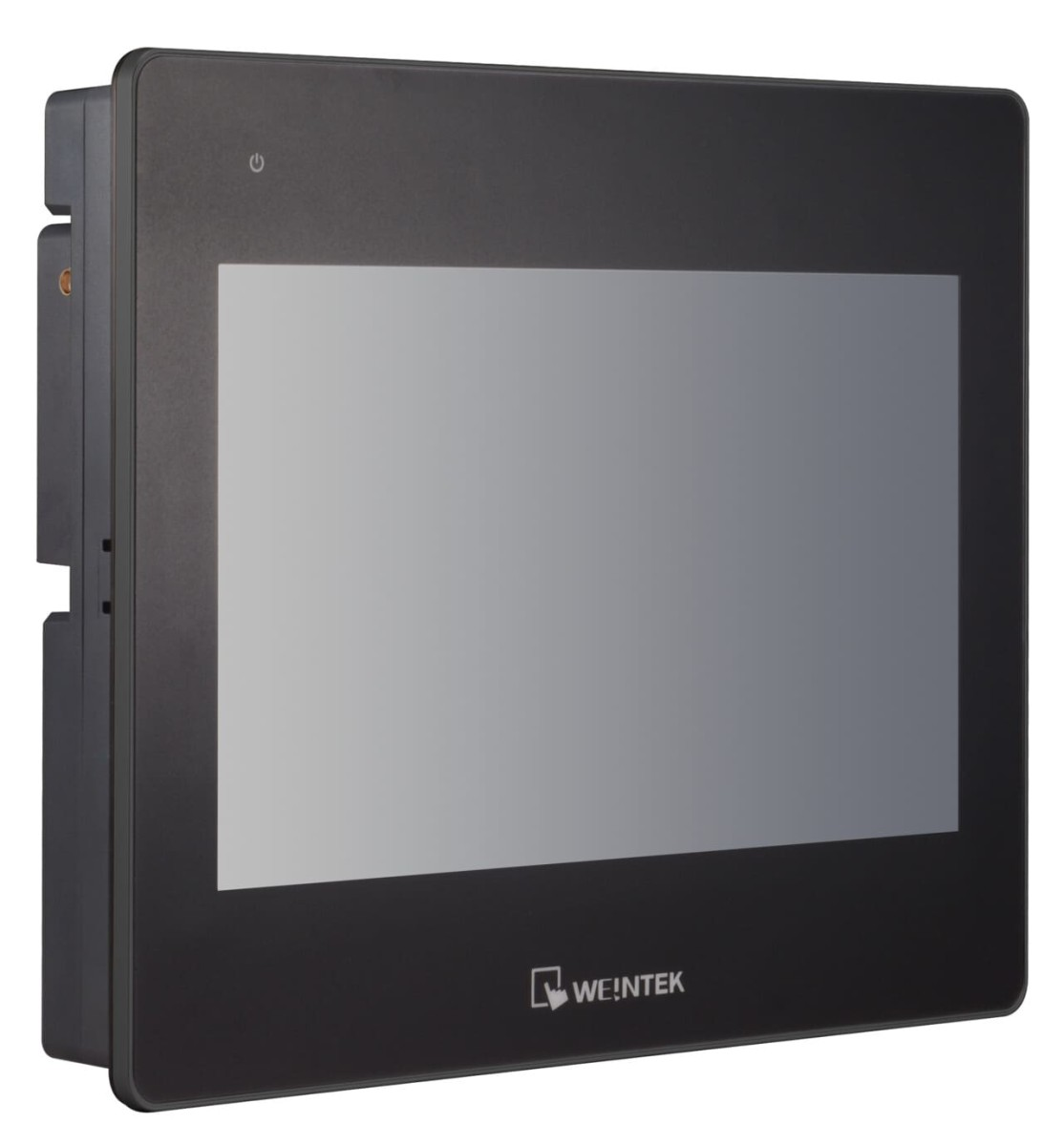

This HMI combines a 10.1-inch WVA display with a resolution of 1024 x 600 for clear and wide-angle visibility. Powered by a quad-core RISC processor with 1GB RAM, it handles complex graphical interfaces with ease. The cMT1106X is built for reliability in harsh conditions, featuring a PCB coating to resist corrosion and built-in power isolation. It offers flexible connectivity, including Ethernet, USB, and configurable COM ports, with optional WiFi functionality via an expansion module. Its design supports both panel and VESA mounting for installation flexibility.

Key Features :

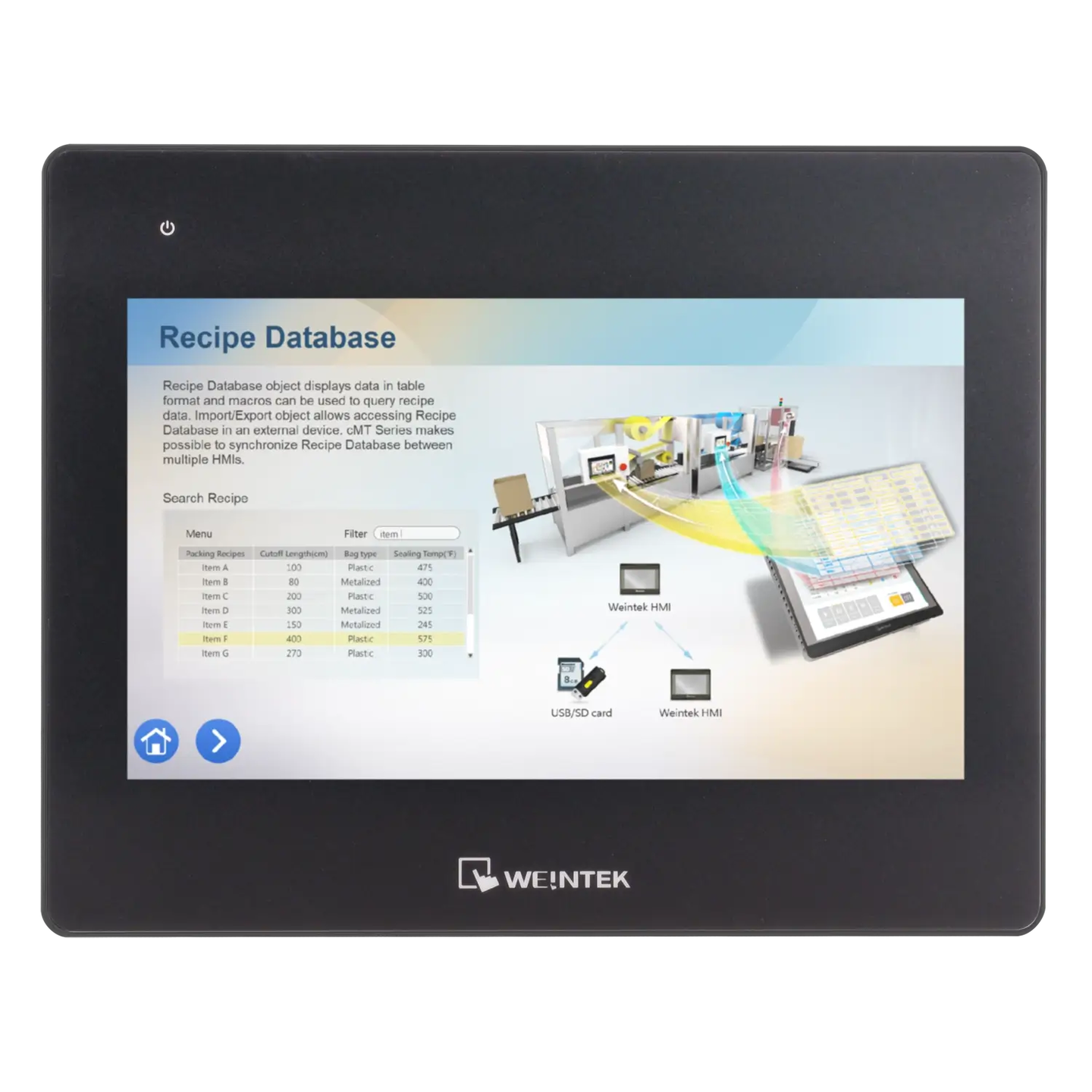

• 10.1" WVA Display: 1024 x 600 resolution with 350 cd/m² brightness and wide 89/89/89/89 viewing angles.

• Quad-Core Processor: Provides powerful performance for dynamic HMI applications.

• Robust Construction: Fan-less cooling, PCB coating, and IP66/NEMA4 front panel for harsh environments.

• Ample Storage: 4GB Flash memory and 1GB RAM.

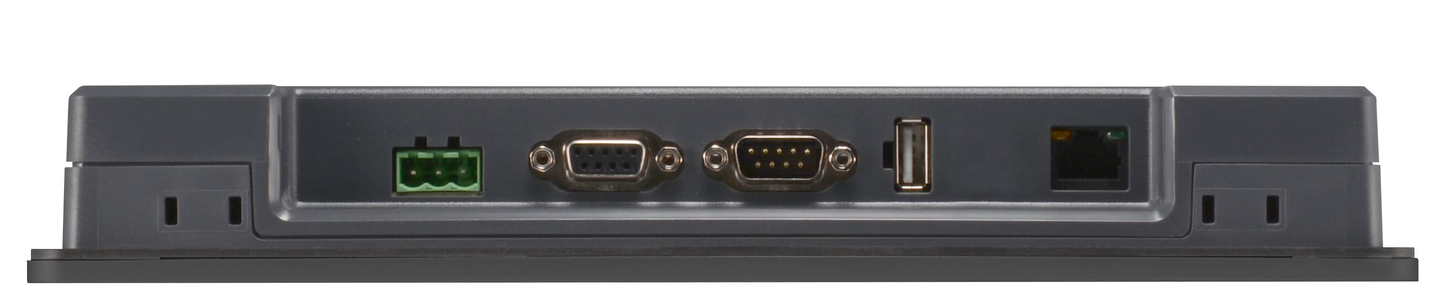

• Flexible Connectivity: 10/100 Ethernet, USB 2.0 host, and configurable COM ports (RS-232/RS-485).

• Expansion Capability: Compatible with M02 WiFi module for wireless communication.

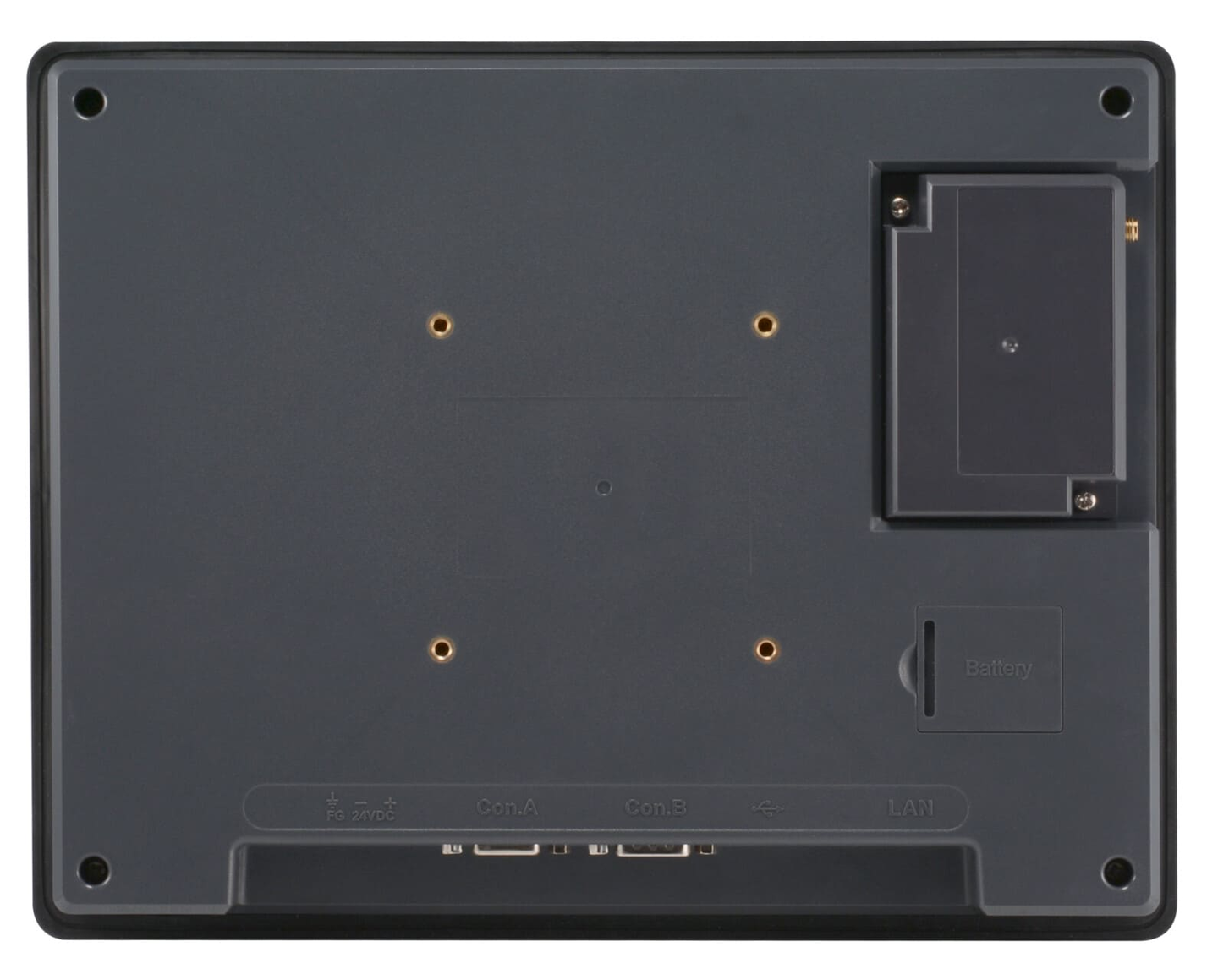

• Multiple Mounting Options: Supports both panel mount and VESA 75x75 mm mount.

Applications :

The cMT1106X is ideal for a wide range of industrial applications, including:

• Factory Automation Systems

• Process Control and Monitoring

• Data Visualization Dashboards

• Machine Operator Interfaces

• Building Management Systems

Technical Specifications :
