Description :

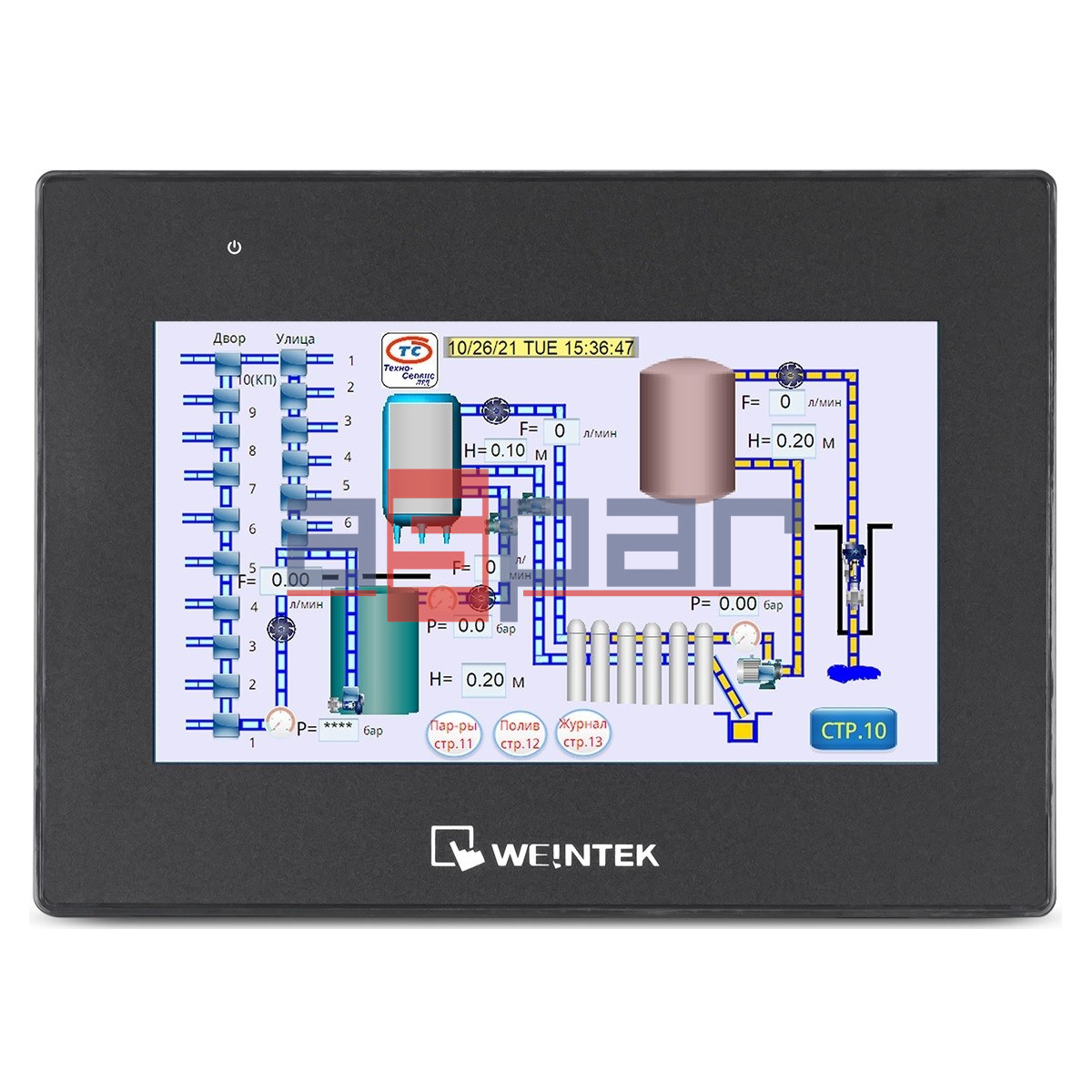

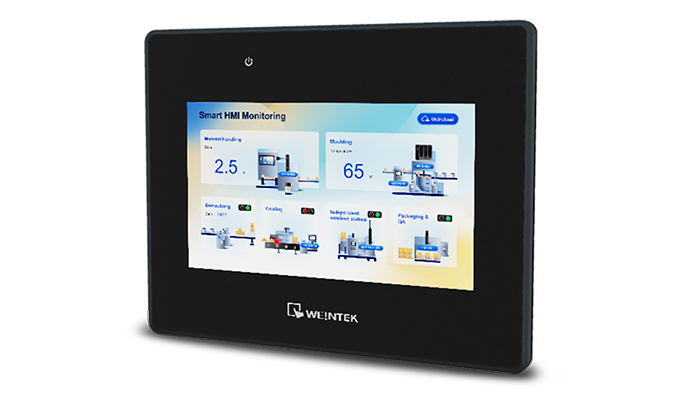

This HMI terminal features a 4.3-inch WVA LCD with a resolution of 800 x 480, offering excellent visibility with a high brightness of 530 cd/m². Driven by a quad-core RISC CPU with a dedicated 3D graphics engine, it ensures smooth and responsive performance for complex operator interfaces. The CMT2058XH comes with comprehensive connectivity options, including two Ethernet ports (one Gigabit) and multiple serial ports supporting protocols like MPI. Its built-in power isolator and 24V DC wide-range input provide enhanced electrical robustness, making it an ideal choice for industrial automation and control systems.

Key Features :

• 4.3" High-Brightness WVA Display: 800 x 480 resolution with 530 cd/m² and wide viewing angles.

• Powerful Quad-Core Processing: Ensures fast and smooth operation for complex HMIs.

• Robust Industrial Design: Fan-less cooling, NEMA4/IP66 front panel, and panel-mount enclosure.

• Ample Memory: 4GB built-in flash and 1GB RAM for project storage and operation.

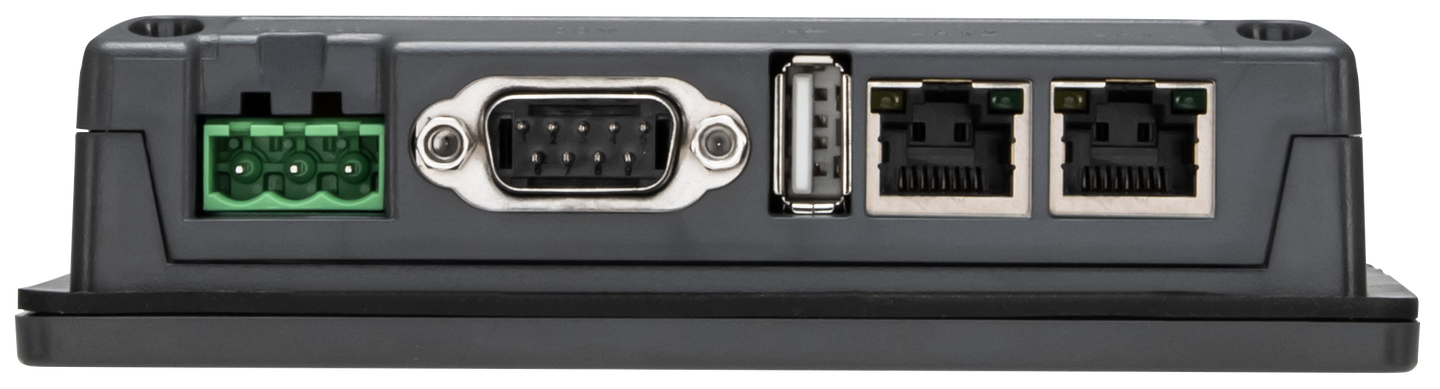

• Rich Connectivity: Includes 10/100/1000 Mbps Ethernet, USB 2.0 host, and isolated COM ports (RS-232/RS-485).

• Built-in Isolation: Features power isolation and serial communication isolation for noise immunity.

• Software Options: Supports Weintek software and an optional CODESYS runtime for PLC functionality.

Applications :

The CMT2058XH is perfectly suited for a wide range of industrial applications, including:

• Industrial Machine Control Panels

• Factory Automation and Process Control

• Building Management Systems

• Data Acquisition and Monitoring Systems

• Equipment Operator Terminals

Technical Specifications Table
