VIPER22ADIP-E Offline Converter IC – STMicroelectronics | 20 W, 60 kHz, 8-Pin DIP, 195–265 VAC Input
Product Description :

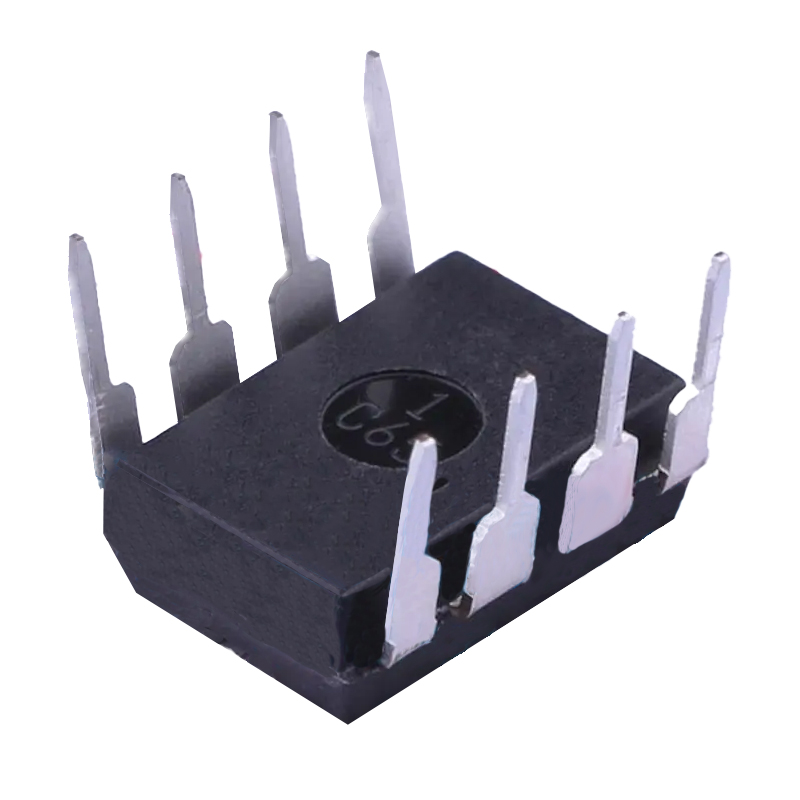

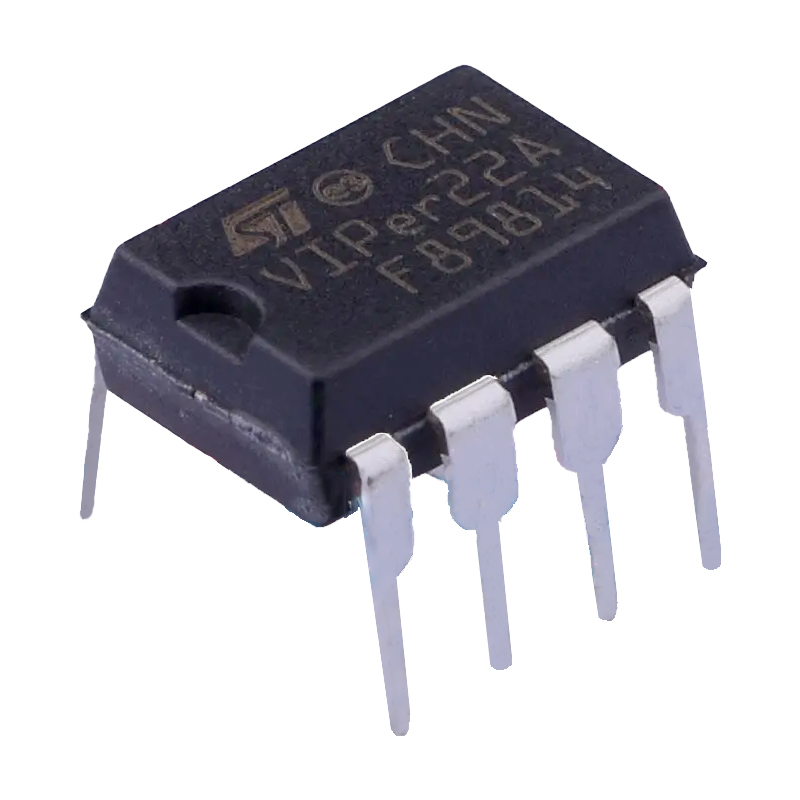

The VIPER22ADIP-E, designed by STMicroelectronics, is a fixed-frequency offline converter in an 8-pin DIP package, combining a dedicated current-mode PWM controller with a high-voltage power MOSFET on a single silicon chip.
It supports a fixed 60 kHz switching frequency, 9 V to 38 V VDD range, and an input voltage range from 195 VAC to 265 VAC, making it well-suited for a wide variety of power supply applications, including battery charger adapters.
The device includes a high-voltage startup current source, auxiliary undervoltage lockout with hysteresis, and protection features such as overtemperature, overcurrent, and overvoltage protection with auto-restart. It also features automatic burst mode under light load conditions, optimizing power efficiency.
Operating over a wide temperature range from –40 °C to +150 °C, the VIPER22ADIP-E is ideal for cost-effective, isolated power supply designs with reliable protection and stable performance.
Applications :
-
Power Management Systems
-
Consumer Electronics
-
Motor Drive and Control Circuits
-
Battery Charger Adapters
-
Industrial Power Supplies
Technical Specifications :
Parameter Value Brand STMicroelectronics Manufacturer Part Number VIPER22ADIP-E Product Type Offline Converter IC Input Voltage (Min) 195 VAC Input Voltage (Max) 265 VAC VDD Voltage Range 9 V to 38 V Switching Frequency 60 kHz Power Rating (Max) 20 W Power Switch Voltage Rating 730 V Power Switch Current Rating 700 mA Isolation Isolated IC Package / Case DIP-8 Mounting Type Through Hole Number of Pins 8 Operating Temperature Range –40 °C to +150 °C Protection Features Overtemperature, Overcurrent, Overvoltage, Auto-Restart Topology Fixed-Frequency Current-Mode PWM SVHC No SVHC (21-Jan-2025)
-
