ASUS ROG Prime 750W Gold Power Supply — 80 PLUS Gold, ATX 3.1, Dual Ball Bearing Fan
Key Features :
-
80 PLUS Gold Efficiency – Achieve high power conversion efficiency with premium low-ESR capacitors for stable and reliable performance.
-

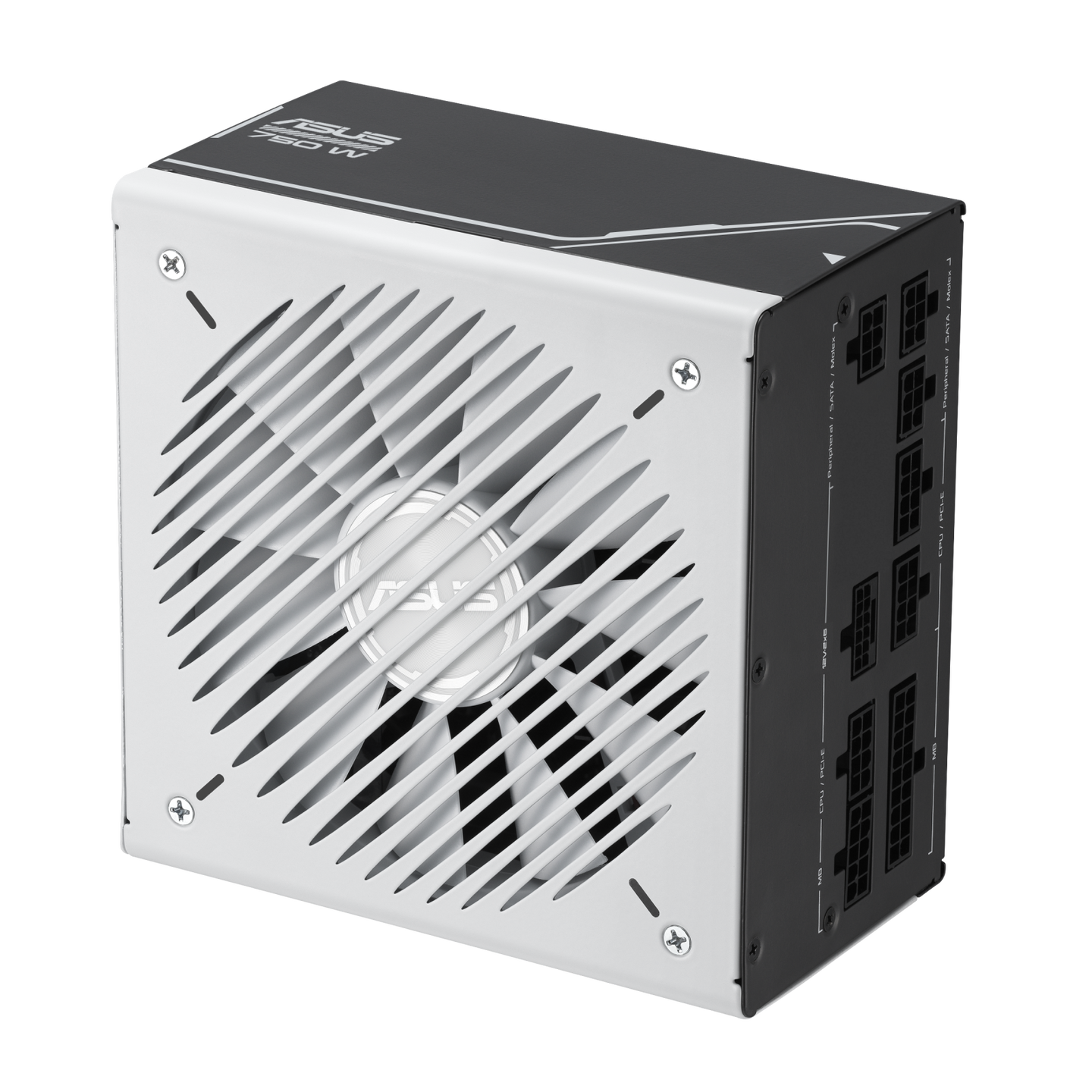

Dual Ball Bearing Fans – Provide up to 2× the lifespan of sleeve bearing fans, ensuring long-term durability and quiet operation.
-
ATX 3.1 Standard + PCIe Gen 5.1 Ready – Fully compliant with the ATX 3.1 specification and includes a 16-pin PCIe cable for powering the latest GPUs.
-
Comprehensive Protection – Equipped with OPP, OVP, UVP, SCP, OCP, and OTP safeguards for stable operation under all conditions.
-

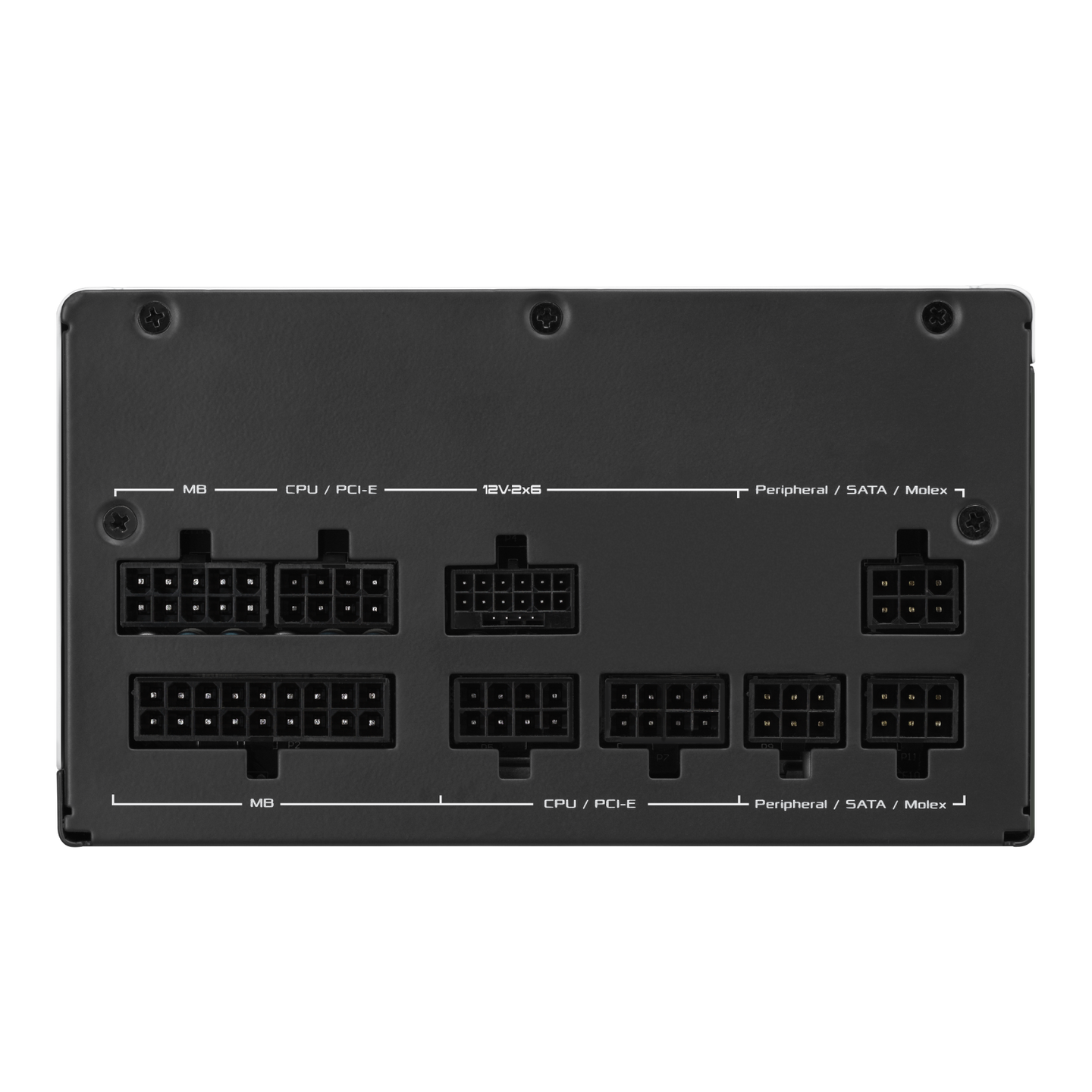

Flexible Cabling – Comes with a complete set of cables for CPU, GPU, SATA, and peripherals to support diverse build configurations.
-
8-Year Warranty – Extended coverage for long-term reliability and confidence in your PSU investment.
Technical Specifications :
Category Details Model AP-750G Form Factor Intel ATX12V PFC Type Active PFC ATX Standard ATX 3.1 Dimensions 150 × 150 × 86 mm Efficiency Certification 80 PLUS Gold MTBF > 120,000 hours @ 25 °C Protection Features OPP / OVP / UVP / SCP / OCP / OTP Environmental Certification RoHS AC Input Range 100–240 Vac DC Output Voltage +3.3V / +5V / +12V / −12V / +5Vsb Maximum Load 20A / 20A / 62A / 0.3A / 2.5A Combined Load 110W / 110W / 744W / 3.6W / 12.5W Total Power Output 750W Cable Connectors - MB 24/20-pin ×1 - CPU 4+4-pin ×2 - PCI-E 16-pin ×1 (PSU & connector side) - PCI-E 8-pin ×3 - SATA ×5 - Peripheral ×3 Package Contents Power Cord ×1, Motherboard Power Cable (610 mm) ×1, CPU Cables (650 mm) ×2, PCI-E Gen 5.1 16-pin Cable (675 mm) ×1, PCI-E 16-pin to 8+8 Cable ×1, PCI-E 1-to-1 Cable (675 mm) ×1, SATA 1-to-2 Cable ×1, SATA 1-to-3 Cable ×1, Peripheral 1-to-3 Cable ×1, User Manual ×1 Weight 1.466 kg (Single PSU) 0dB Technology Not Supported Warranty 8 Years
-
