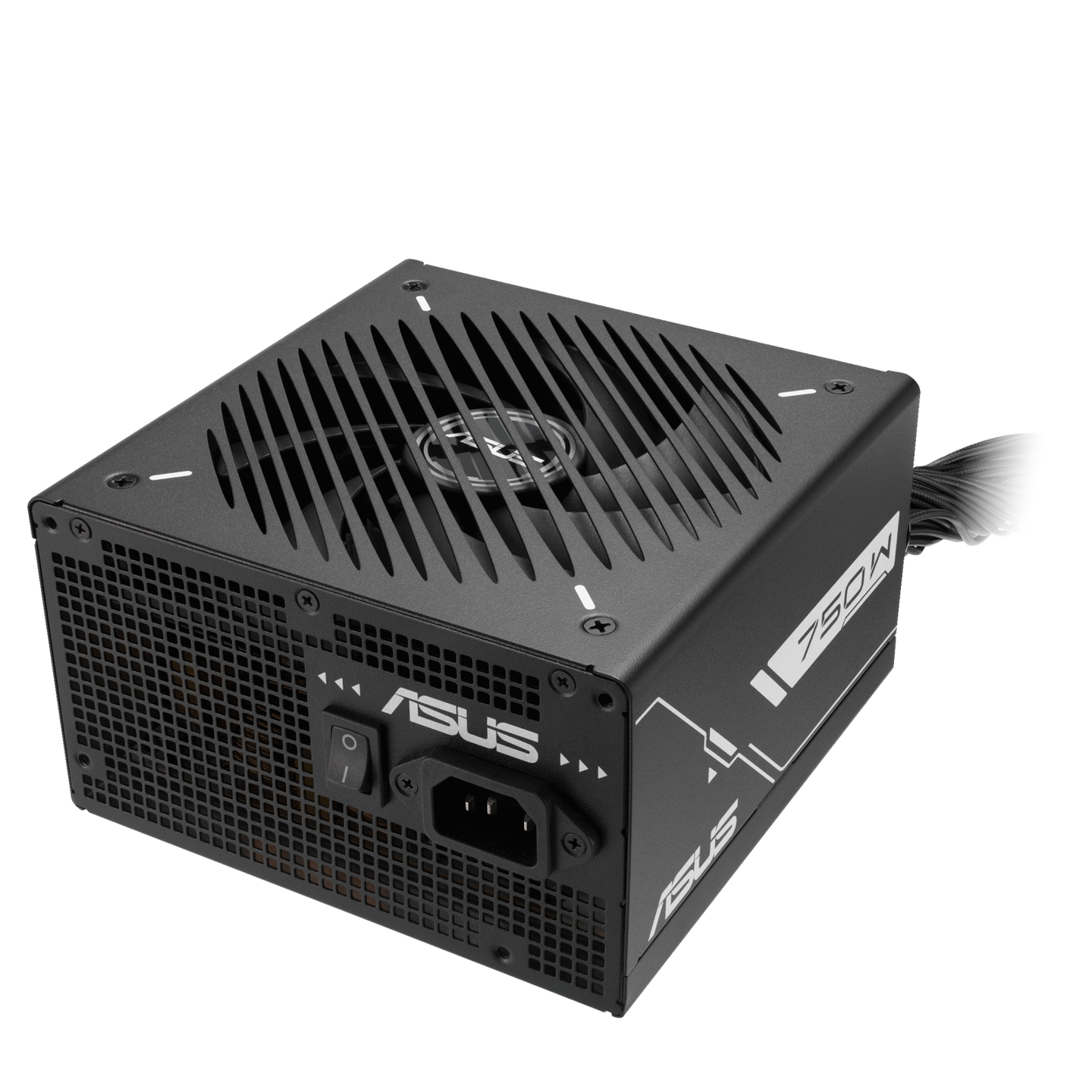

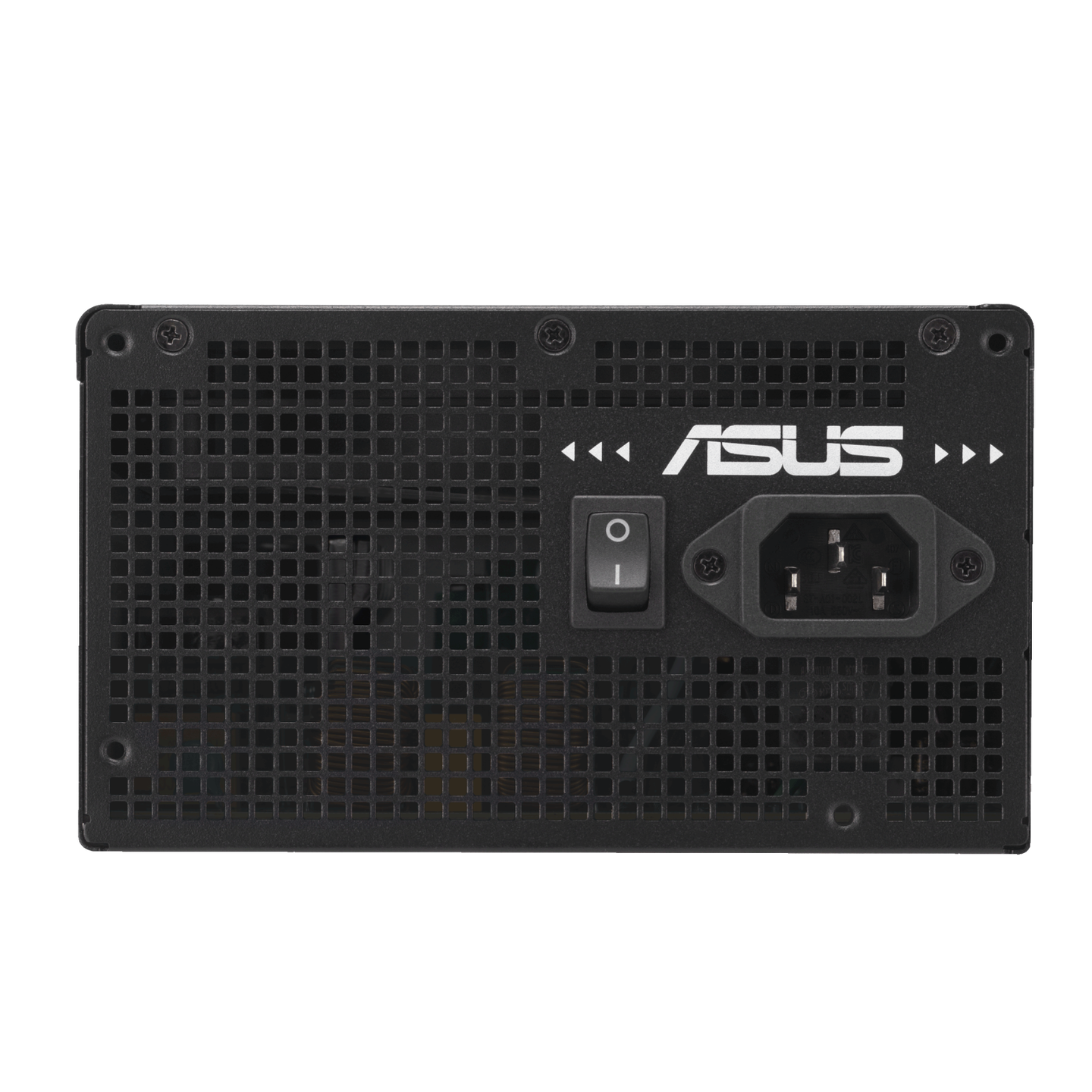

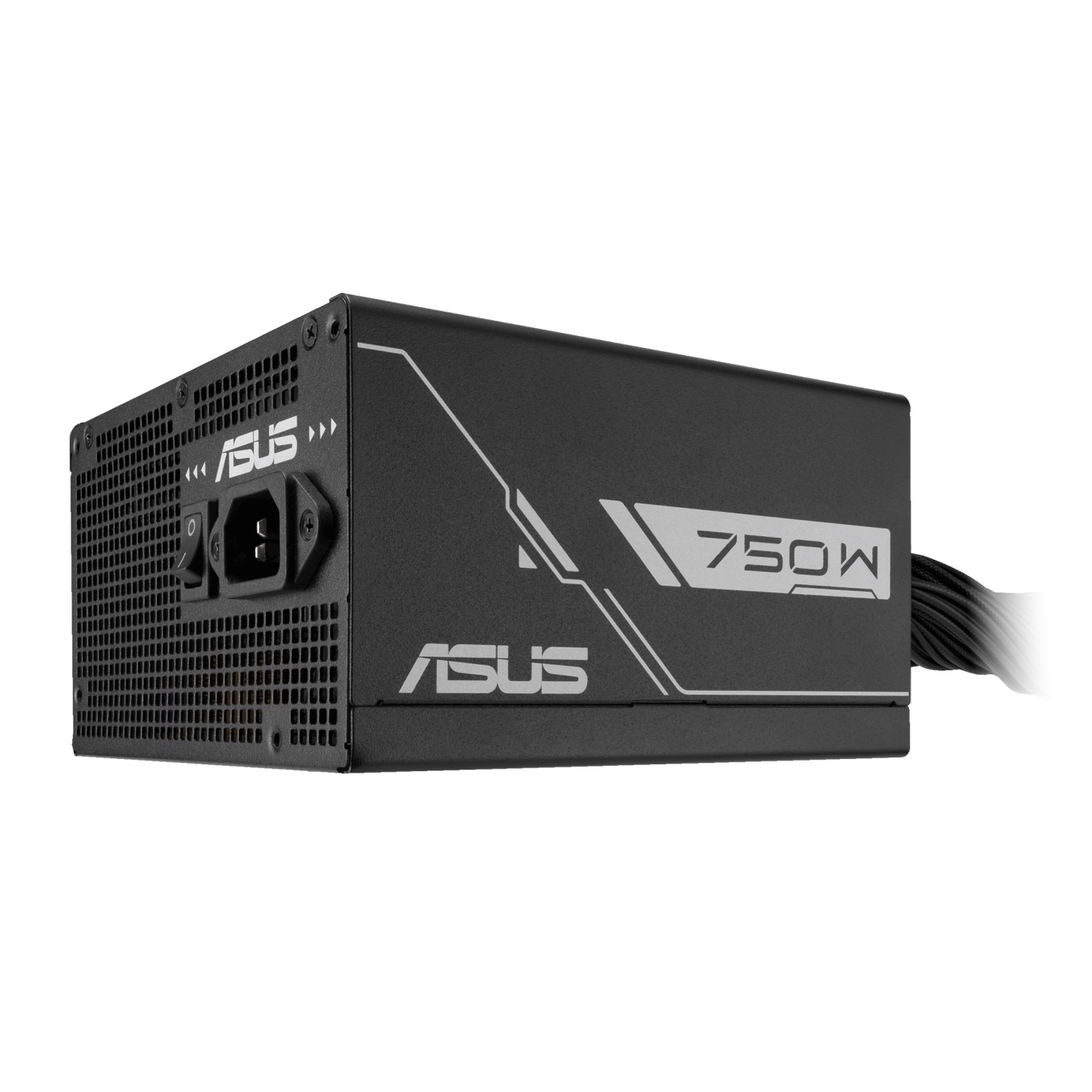

ASUS ROG Prime 750W Bronze Power Supply — ATX12V, 80 PLUS Bronze Certified, Dual Ball Bearing Fan
Key Features
-
750W Bronze Efficiency – 80 PLUS Bronze certified with premium low-ESR electrolytic capacitors for stable and efficient power delivery.
-
Dual Ball Bearing Fans – Offer up to twice the lifespan of sleeve bearing designs for long-lasting cooling performance.
-
Flexible Etched Cables – Bend easily during installation, allowing for cleaner cable management and optimized airflow.
-
Comprehensive Protection – Built-in OPP, OVP, UVP, SCP, OCP, and OTP safeguards ensure stable operation under varying loads.
-
Wide AC Input Range – Supports 100–240 Vac for compatibility across regions.
-
Versatile Connectivity – Comes with multiple CPU, PCI-E, SATA, and peripheral connectors to support a variety of builds.
Technical Specifications :
Category Details Model PRIME-750B-BLACK Form Factor Intel ATX12V PFC Type Active PFC Dimensions 150 × 150 × 86 mm Efficiency Certification 80 PLUS Bronze MTBF > 120,000 hours @ 25 °C Protection Features OPP / OVP / UVP / SCP / OCP / OTP Environmental Certification RoHS AC Input Range 100–240 Vac DC Output Voltage +3.3V / +5V / +12V / −12V / +5Vsb Maximum Load 20A / 20A / 62.5A / 0.3A / 2.5A Combined Load 120W / 120W / 750W / 3.6W / 12.5W Total Power Output 750W Cable Connectors - MB 24/20-pin ×1 - CPU 4+4-pin ×2 - PCI-E 8-pin ×3 - SATA ×6 - Peripheral ×3 Package Contents Power Cord ×1, Motherboard Power Cable (600 mm) ×1, CPU Cables (800 mm) ×2, PCI-E 1-to-2 Cable (600 mm) ×1, PCI-E 1-to-1 Cable (600 mm) ×1, SATA 1-to-3 Cables ×2 (400+120+120 mm), Peripheral 1-to-3 Cable ×1, User Manual ×1 Weight 2.2 kg (Single PSU) / 3.067 kg (With Packing) 0dB Technology Not Supported
-
