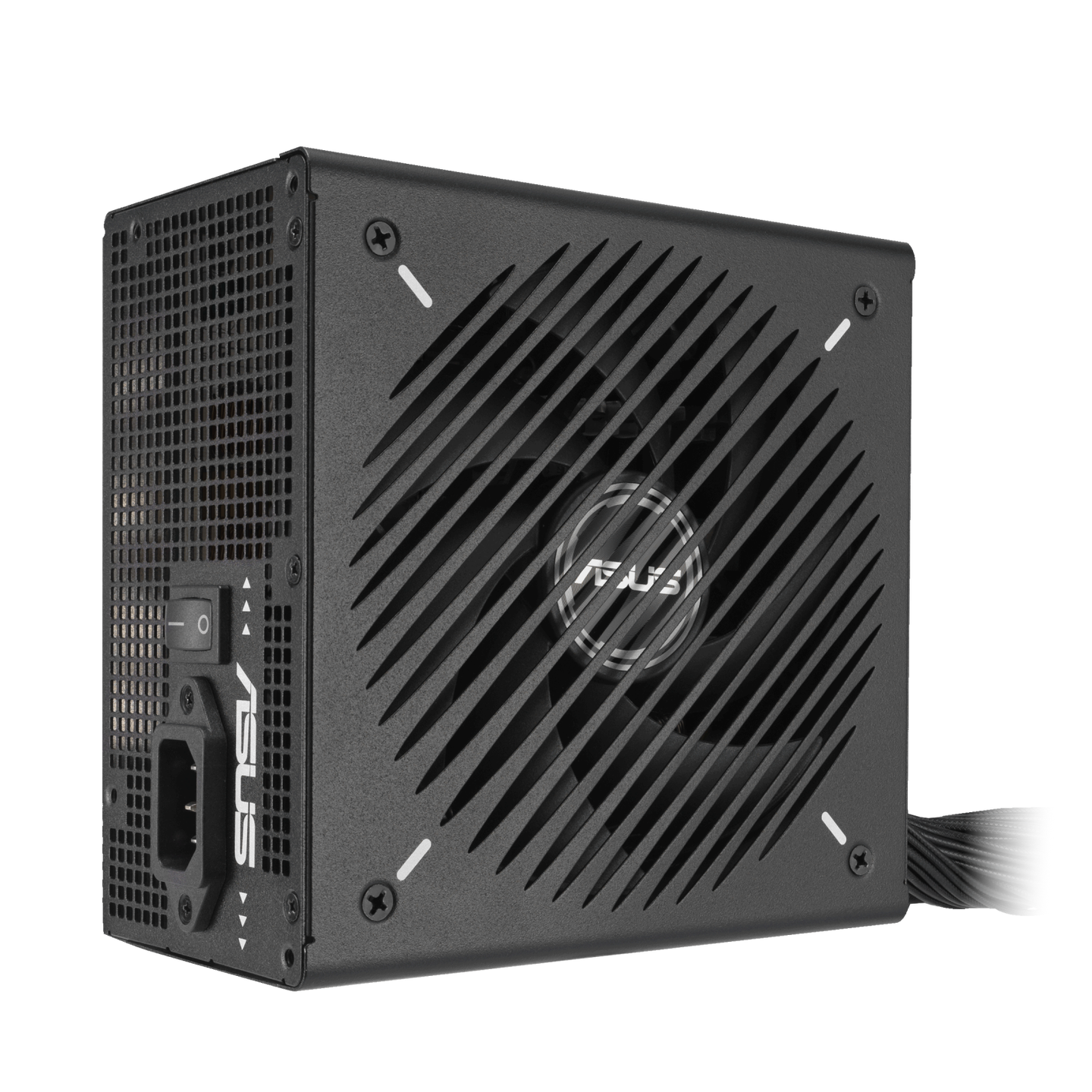

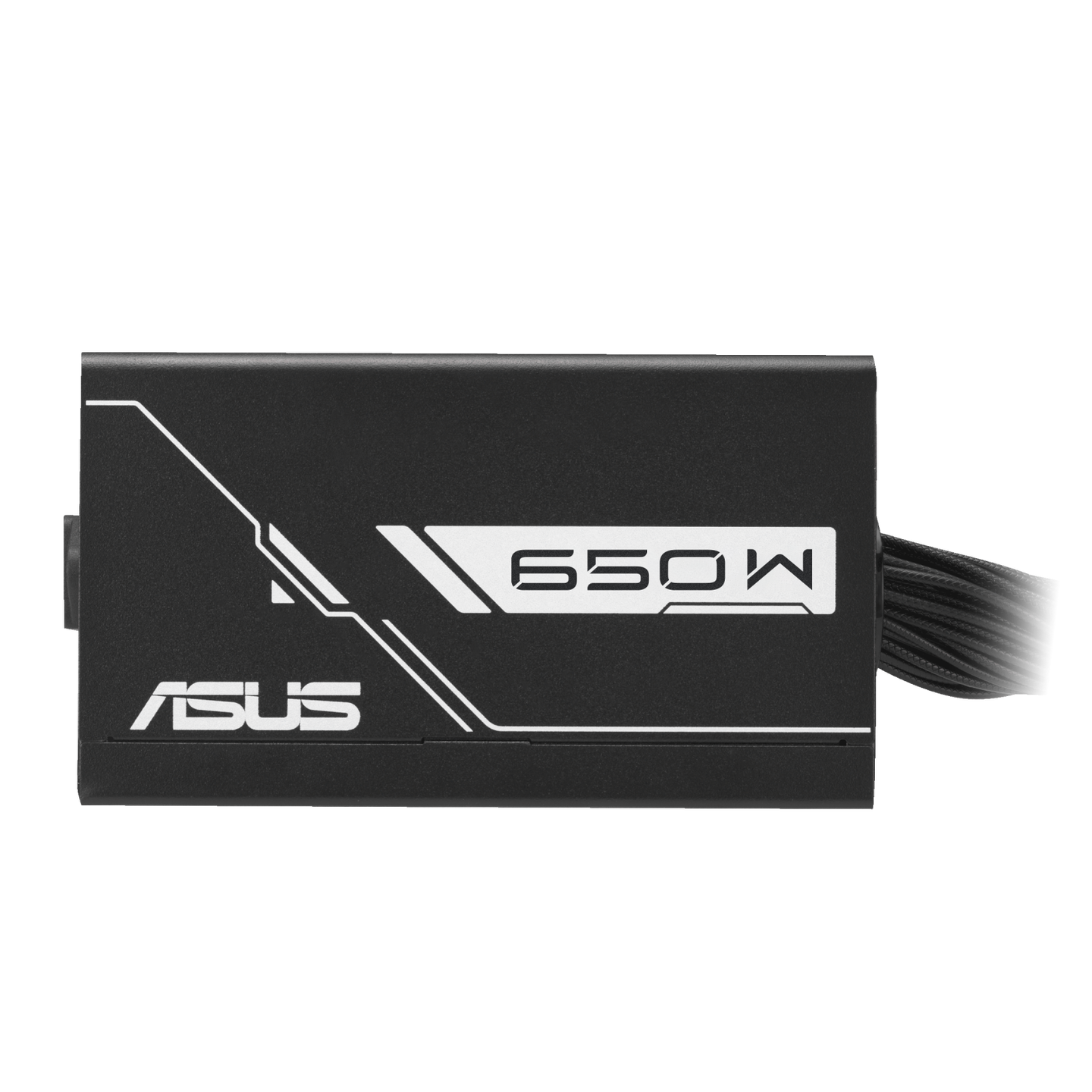

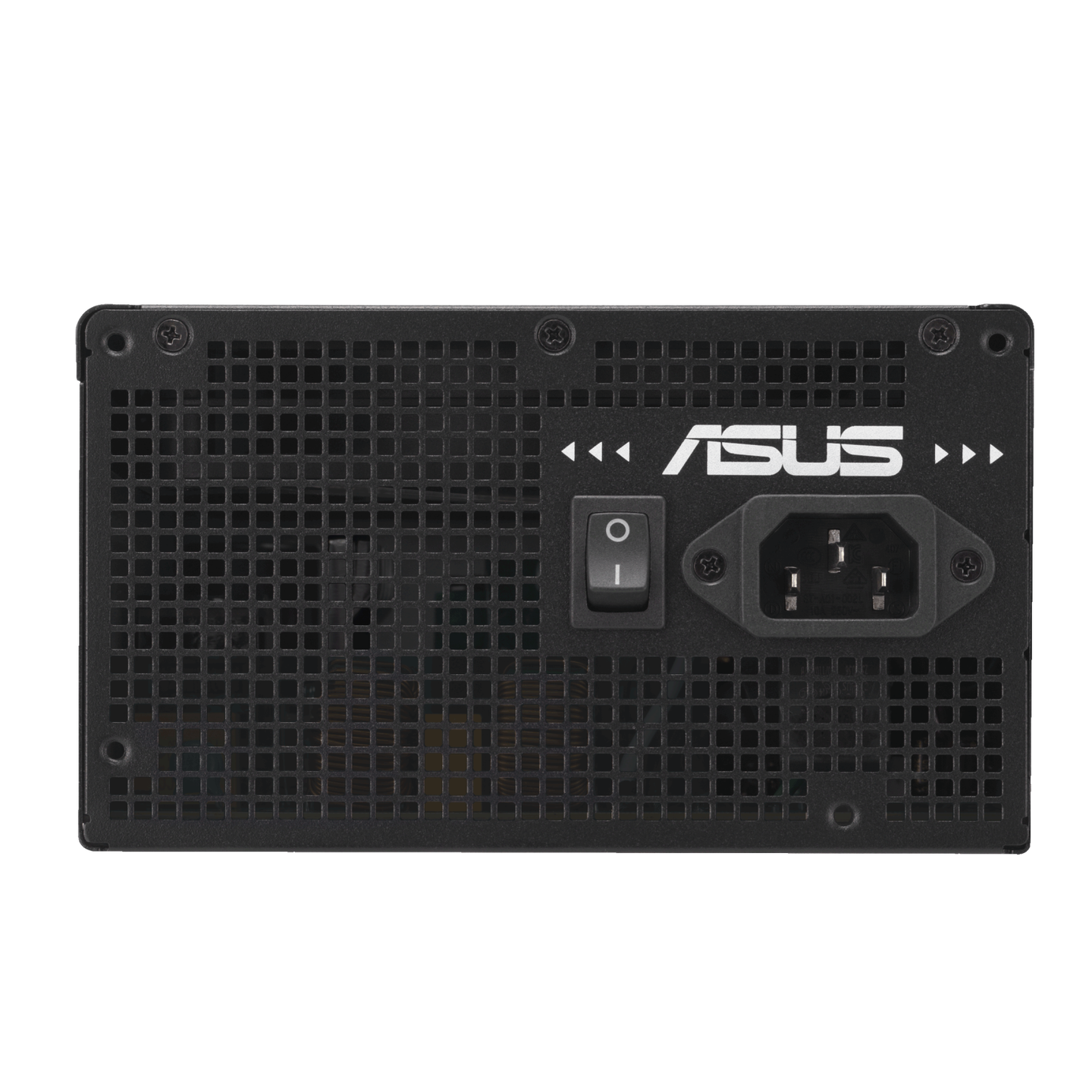

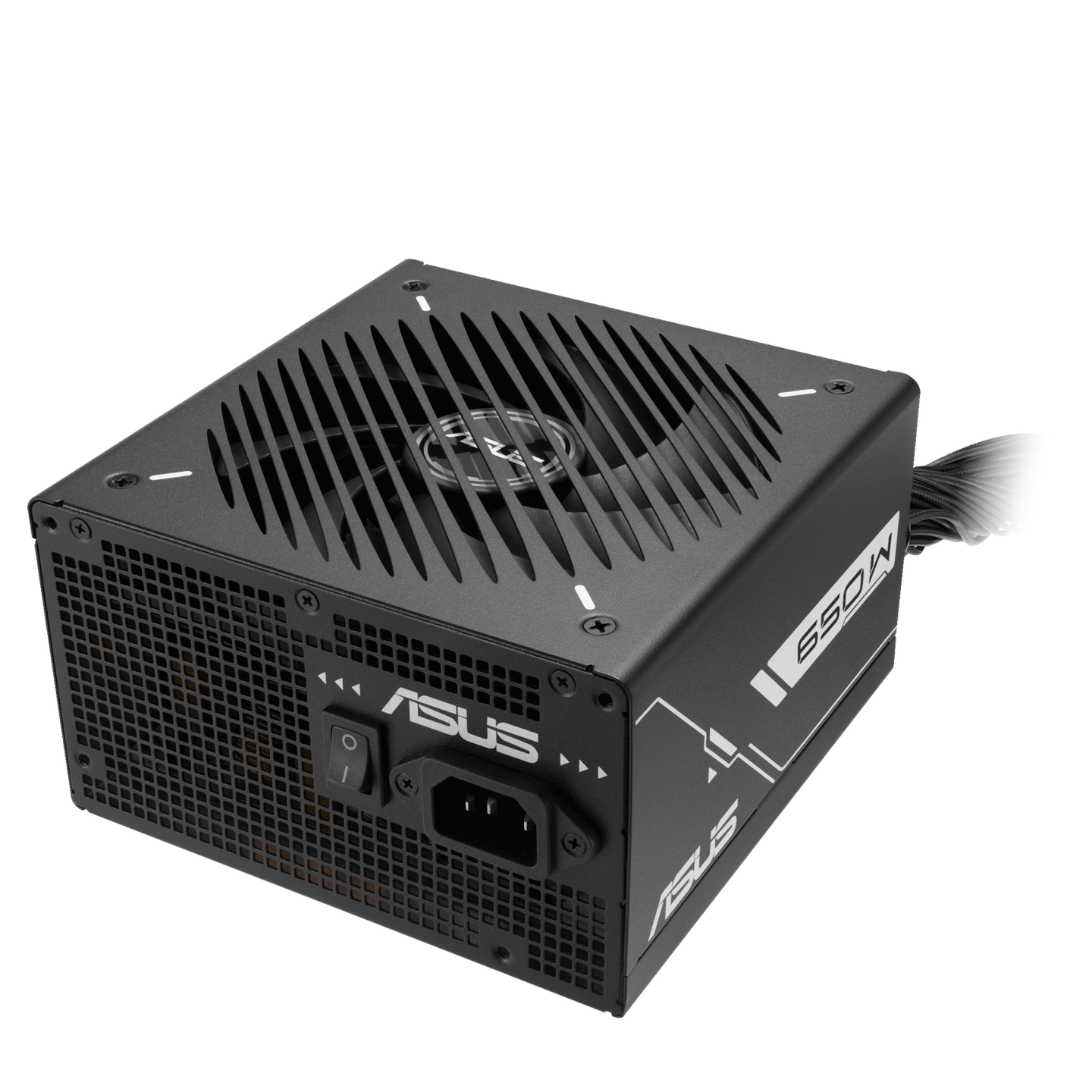

ASUS ROG Prime 650W Bronze Power Supply — ATX12V, 80 PLUS Bronze, Dual Ball Bearing Fan
Key Features
-
650W Bronze Efficiency – 80 PLUS Bronze certified for reliable and efficient power delivery using premium low-ESR electrolytic capacitors.
-
Dual Ball Bearing Fans – Last up to twice as long as standard sleeve-bearing fans, ensuring durable cooling performance.
-
Flexible Etched Cables – Designed for easy bending and cleaner installations in tight spaces.
-
Comprehensive Protection – Equipped with OPP, OVP, UVP, SCP, OCP, and OTP safety features for stable, long-term operation.
-
Wide AC Input Range – Supports 100–240 Vac for worldwide compatibility.
-
Essential Connectivity – Includes 24-pin motherboard, CPU, PCI-E, SATA, and peripheral connectors for versatile system support.
Technical Specifications :
Category Details Model PRIME-650B-BLACK Form Factor Intel ATX12V PFC Type Active PFC Dimensions 150 × 150 × 86 mm Efficiency Certification 80 PLUS Bronze MTBF > 120,000 hours @ 25 °C Protection Features OPP / OVP / UVP / SCP / OCP / OTP Environmental Certification RoHS AC Input Range 100–240 Vac DC Output Voltage +3.3V / +5V / +12V / -12V / +5Vsb Maximum Load 20A / 20A / 54A / 0.3A / 2.5A Combined Load 110W / 110W / 648W / 3.6W / 12.5W Total Power Output 650W Cable Connectors - MB 24/20-pin ×1 - CPU 4+4-pin ×1 - PCI-E 8-pin ×2 - SATA ×5 - Peripheral ×3 Package Contents Power Cord ×1, CPU Cable (800 mm) ×1, PCI-E 1-to-2 Cable (600 mm) ×1, SATA 1-to-2 Cable (400+120 mm) ×1, SATA 1-to-3 Cable (400+120+120 mm) ×1, Peripheral 1-to-3 Cable ×1, User Manual ×1 Weight 2.2 kg (Single PSU) / 3.067 kg (With Packing) 0dB Technology Not Supported
-
