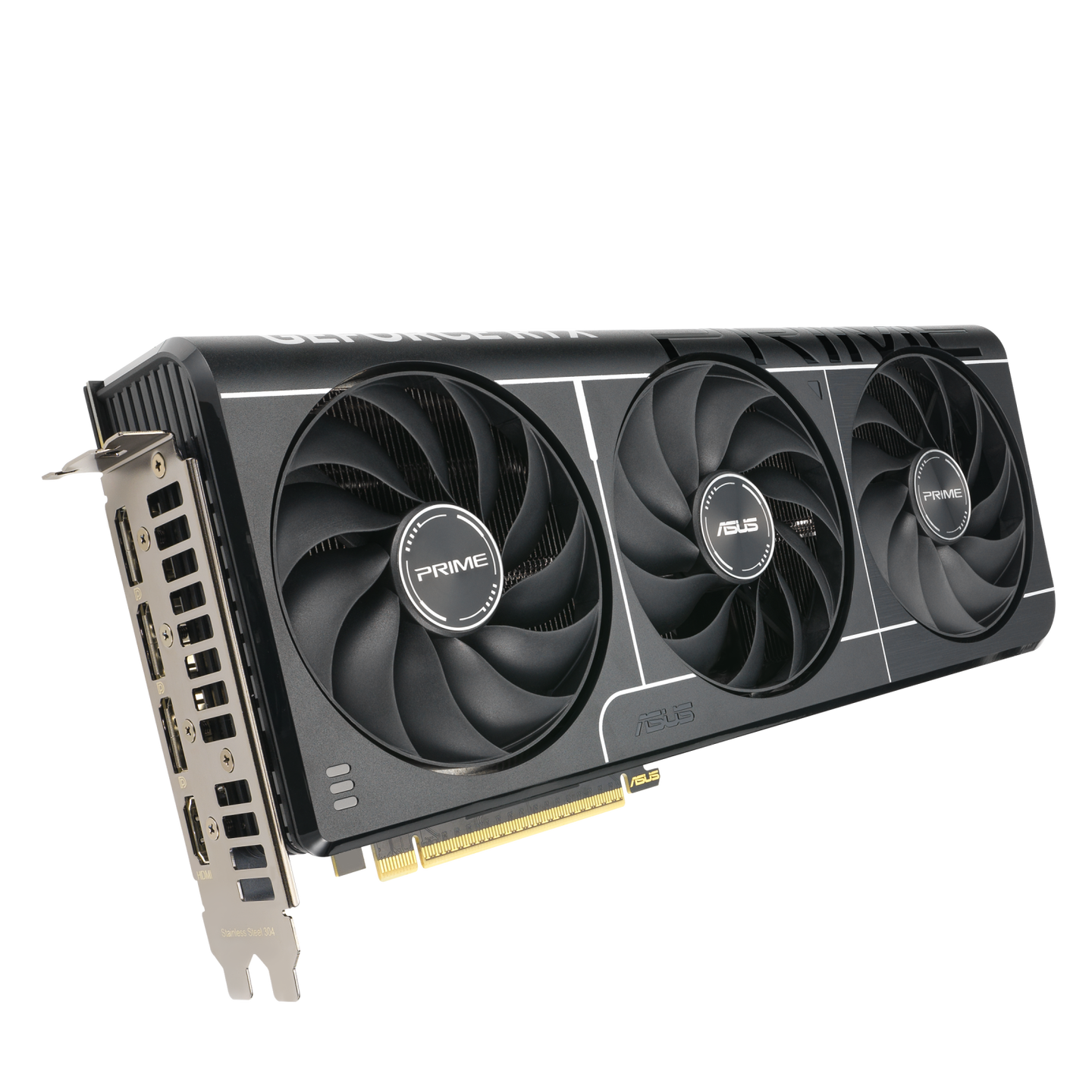

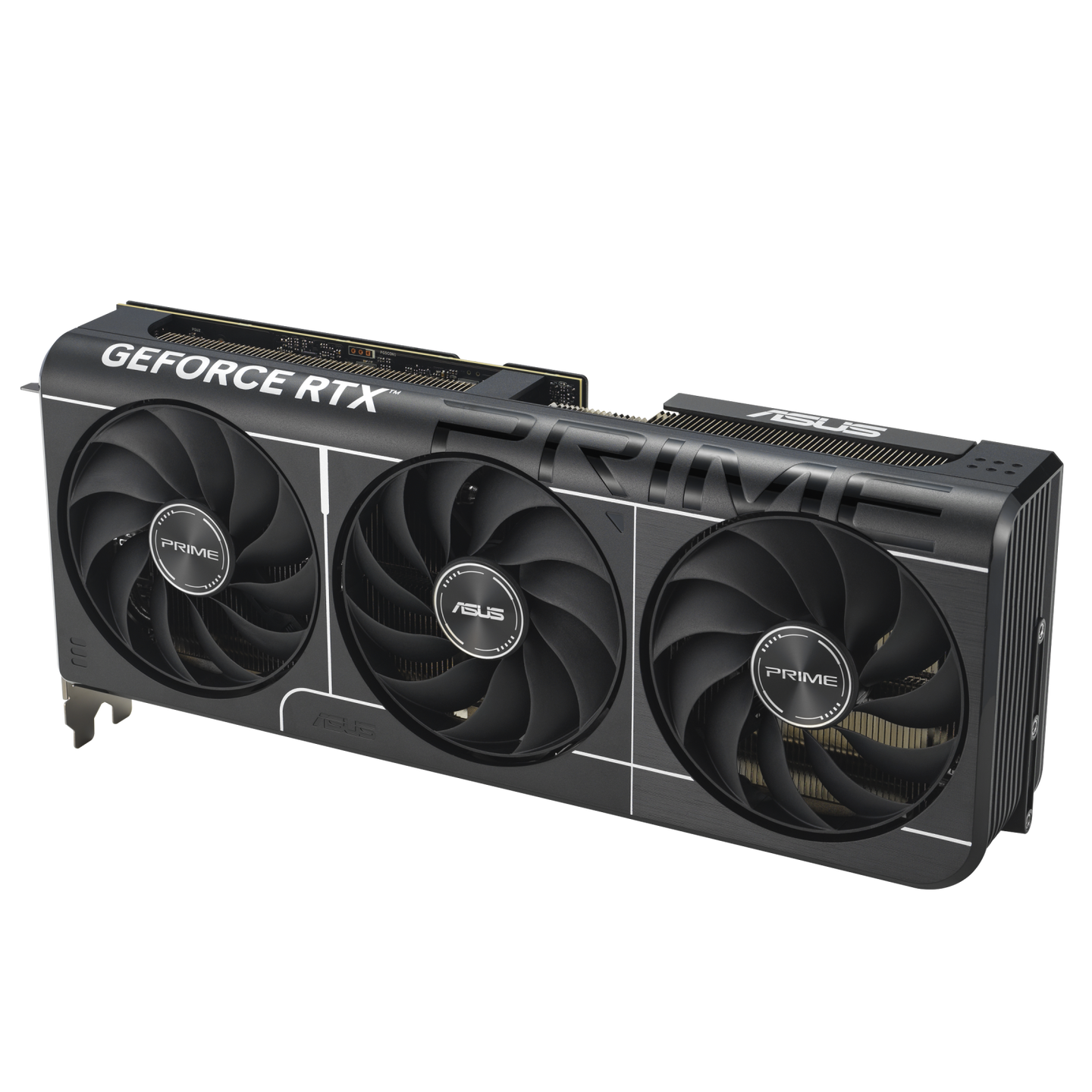

ASUS Prime GeForce RTX 5070 OC Edition 12GB GDDR7,SFF-Ready,DLSS 4,1005 AI TOPS,PCIe 5.0
Key Features
-
AI Performance – 1005 AI TOPS: Accelerated computing power for AI-enhanced rendering, gaming, and creative workflows.
-
NVIDIA Blackwell Architecture + DLSS 4: Enjoy superior performance, efficiency, and image quality with the latest GPU technology.
-
OC Mode up to 2587 MHz: Boosts frame rates for demanding games and applications.
-
SFF-Ready Design: Compact 2.5-slot layout for excellent compatibility with small form factor builds without compromising cooling.
-

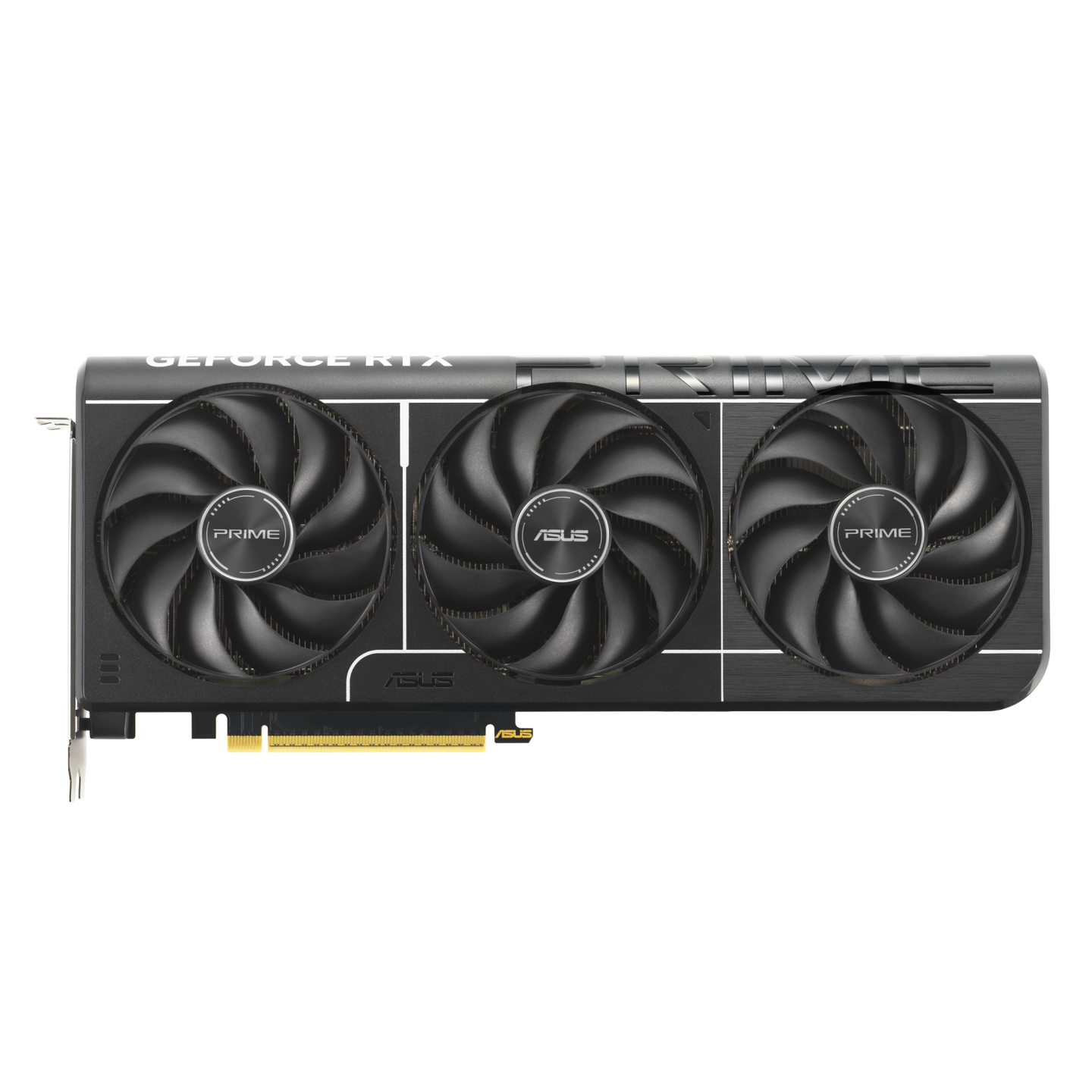

Triple Axial-Tech Fans: Smaller hubs, longer blades, and barrier rings push more air downward for enhanced thermal performance.
-
Phase-Change Thermal Pad: Improves heat transfer, lowering GPU temperatures for stable performance.
-
Dual-Ball Fan Bearings: Up to 2× longer lifespan compared to traditional sleeve bearings.
-
0dB Technology: Near-silent operation during light gaming and low loads.
-

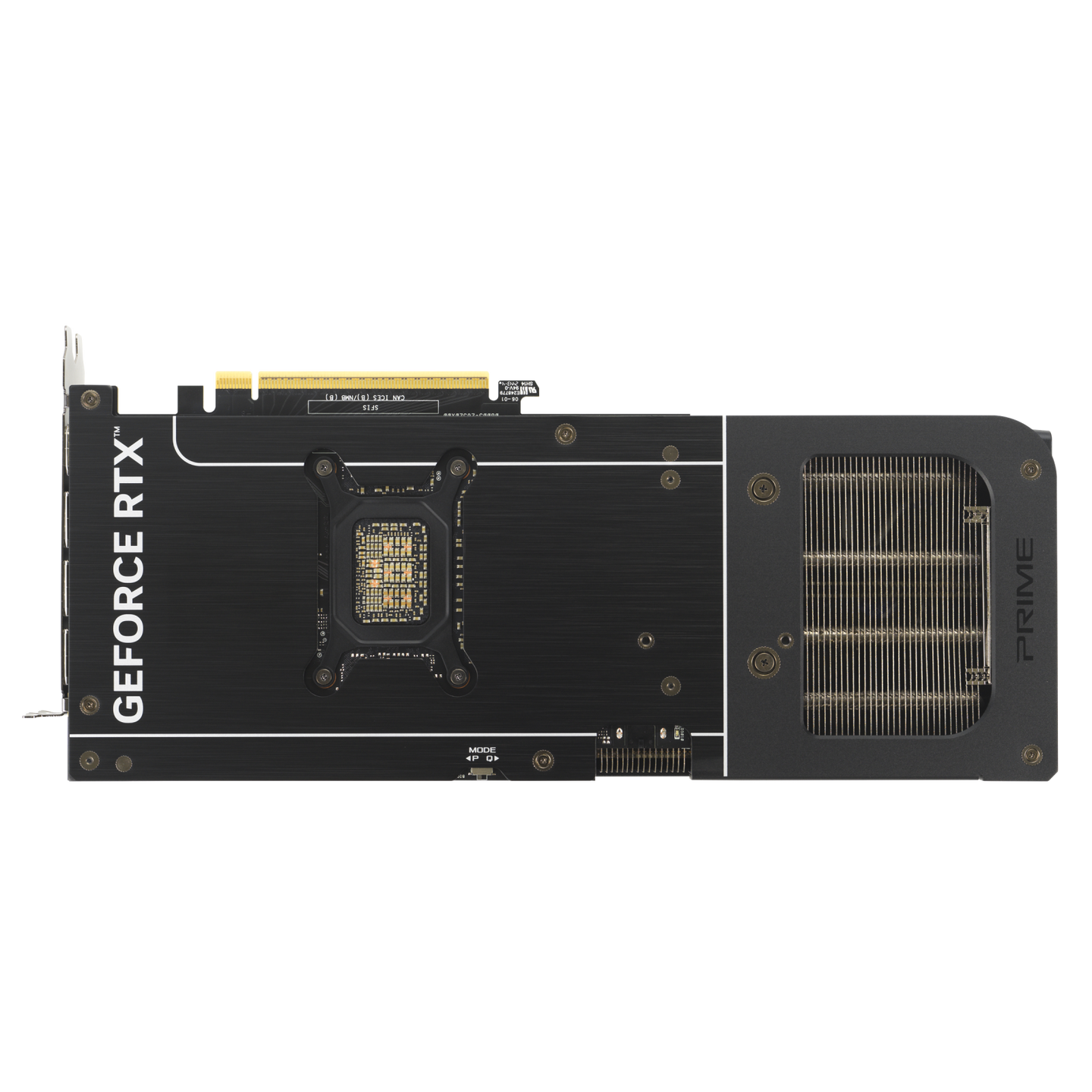

Dual BIOS Switch: Easily toggle between Quiet and Performance profiles.
-
Auto-Extreme Manufacturing: Precision automated production ensures durability and long-term reliability.
-
GPU Tweak III Software: Fine-tune performance, manage thermals, and monitor system health in real time.
-

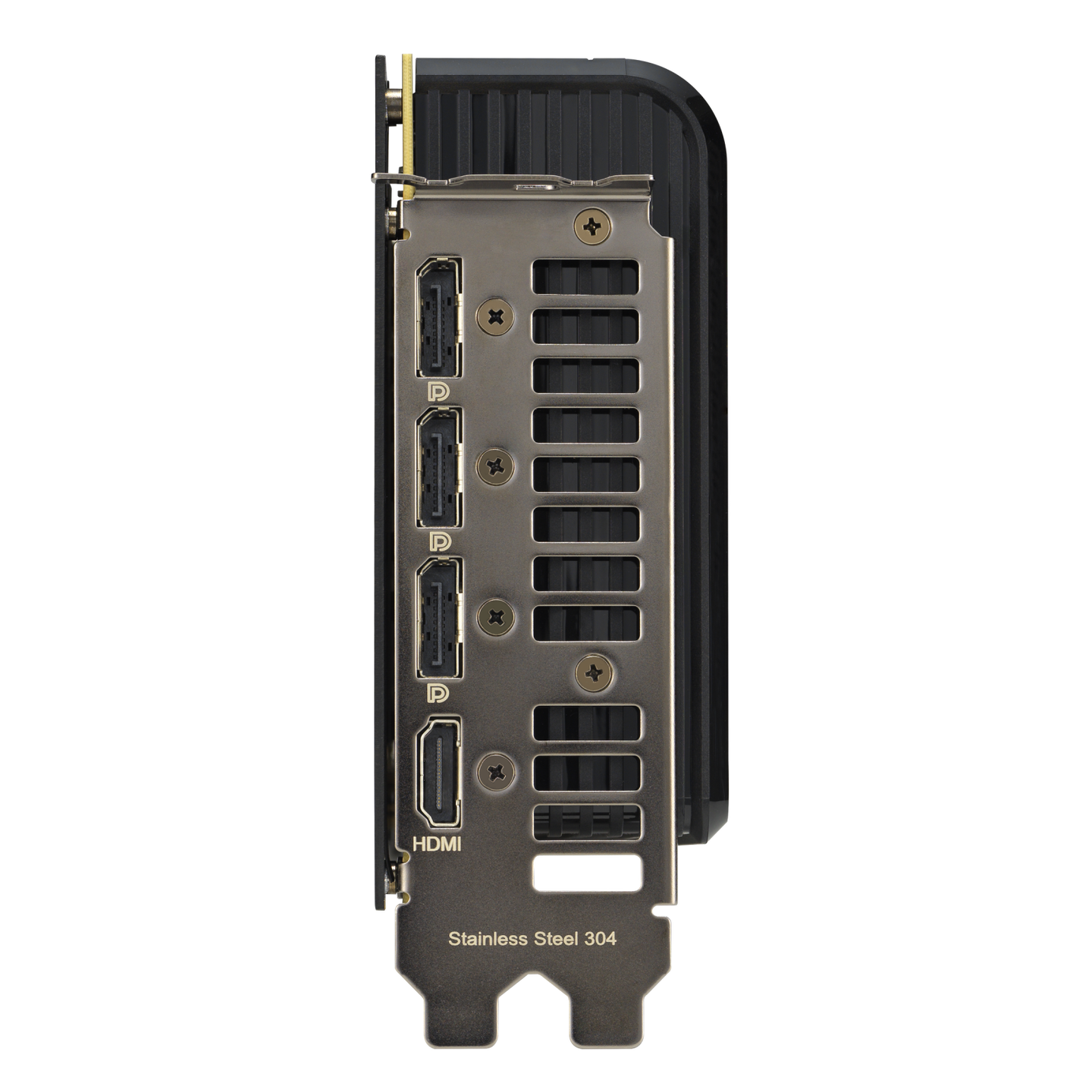

HDMI 2.1b + DisplayPort 2.1b: Support for up to 4 displays at 8K resolution.
-
PCIe 5.0 & 16-pin Power: Optimized for modern systems and high power delivery.
-
SFF Compatibility: Perfect for compact builds with powerful performance.
Technical Specification :
Category Details Model PRIME-RTX5070-O12G Graphic Engine NVIDIA® GeForce RTX™ 5070 AI Performance 1005 AI TOPS Bus Standard PCI Express 5.0 OpenGL OpenGL® 4.6 Video Memory 12GB GDDR7 Engine Clock OC Mode: 2587 MHzDefault Mode: 2557 MHz (Boost) CUDA Cores 6144 Memory Speed 28 Gbps Memory Interface 192-bit Max Digital Resolution 7680 × 4320 Display Outputs 1 × HDMI 2.1b3 × DisplayPort 2.1bHDCP 2.3 Maximum Display Support 4 NVLink / Crossfire No Accessories Included Speedsetup Manual, Velcro Hook & Loop, Thank You Card, 1-to-2 Adapter Cable Software ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver & Studio Driver Dimensions (mm) 304 × 126 × 50 mm Dimensions (in) 12 × 5 × 2 inch Recommended PSU 750W Power Connectors 1 × 16-pin Slot 2.5 Slot SFF Ready Yes (Compatible)
-
